WU-HSING made Automatic Sealer (WN-xx5AT, WN-xx10AT) is designed for the continuous sealing of polyethylene and alum. materials. Double-sides sealing: 5mm, 10mm. Controlled by a plug-in circuit board that provides the uniform by an electromagnet. Sealing is maintained automatically after 3 Timers are set. Foot switch for manual operation. (Re-cycle time must be “0”) Once the correct Timer settings have been programmed, consistent seals are maintained automatically to make the last sealing as perfect as the first. 3 Timers (Sealing time, Congealing time, Re-cycle (waiting) time) setting is maintained automatically for auto operation. Foot switch for manual operation (Re-cycle (Waiting) time must be “0”). *Congealing time is necessary for Impulse sealing Ideal materials: PE, PP, OPP, PVC, POF... Nylon, Alum., Kraft paper, Optional device: Stainless steel (SUS #304) ,Date Imprinter, 10mm sealing, Stand
產品詳細資訊
Auto Sealer
Desktop Electric Instant Heat Sealer -WN-AT/AAT



WN-AT/AAT Series
Desktop Electric Instant Heat Sealer -WN-AT/AAT
Auto Sealer
Wu-Hsing is a manufacturer and designer that offer the top quality various bags Sealers and Vacuum Sealers and best service in Taiwan to whole world.

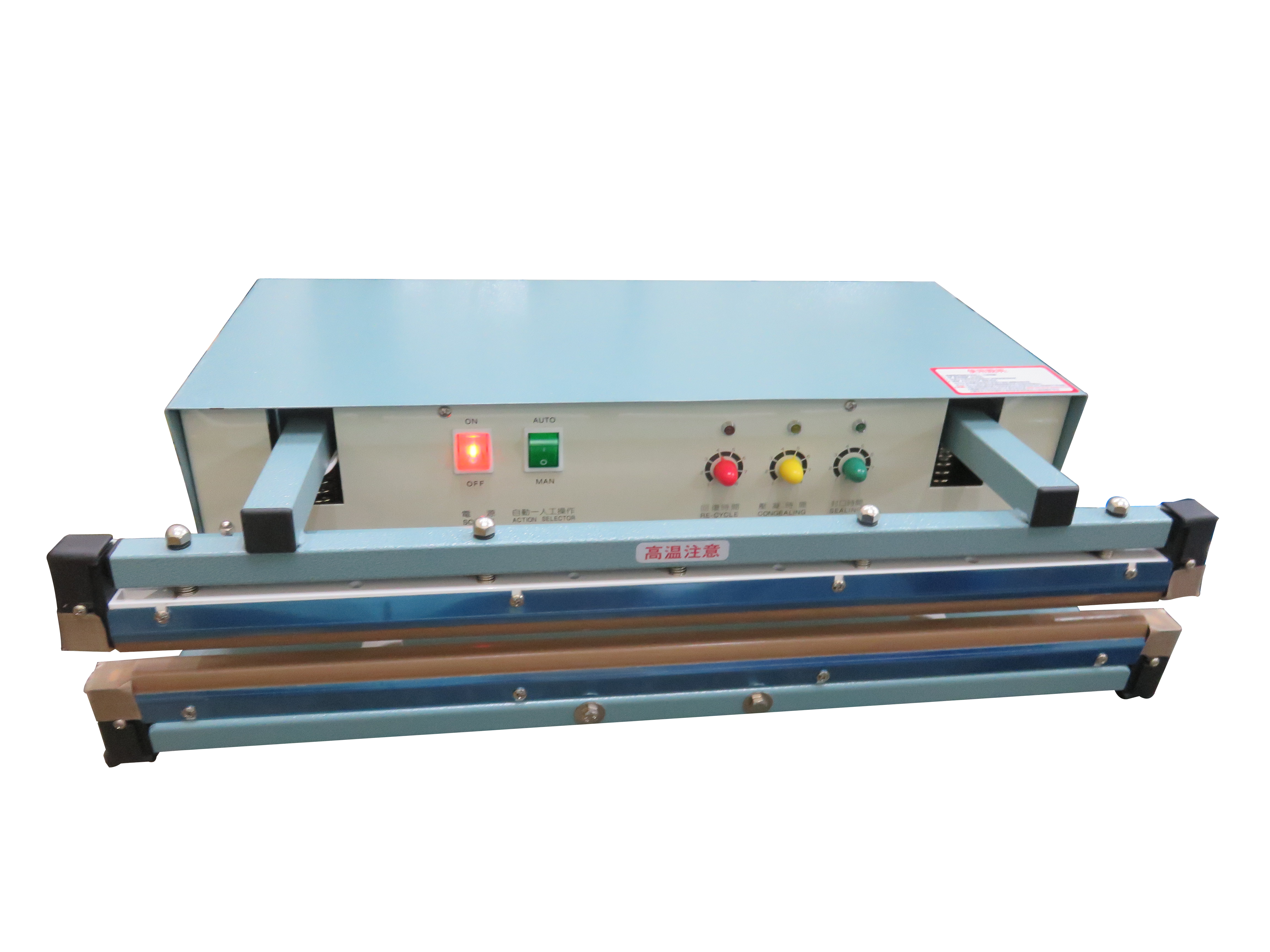

WU-HSING made Automatic Sealer is designed for the continuous sealing of polyethylene and polypropylene materials.
Controlled by a plug-in circuit board and an uniform pressure electromagnet. Foot Switch for manual operating.
Sealing width: 2.7/5mm/10mm. Available size: 300 ~ 1500mm.
For Impulse sealing, is sealing Timer control. Congealing time is necessary to an excellent and perfect sealing..
*Single sealing : PE, PP, OPP, PVC, POF …plastic materials.
*Double-sides sealing: Alum. Gusset (folded) bags
Optional device: Stainless steel (SUS #304) ,Date Imprinter, 10mm sealing
Specification | WN-305AT | WN-455AT | WN-605AAT | WN-755AAT | WN-905AAT | WN-1005AAT |
---|---|---|---|---|---|---|
Voltage | 110V/220V | 220V/240V | ||||
Power (Watt.) | 1210W | 2640W | 3080W | 3150W | 3300W | 3850W |
Max. sealing | 300*5mm*2 | 450*5mm*2 | 600*5mm*2 | 750*5mm*2 | 900*5.0mm | 1000*5.0mm |
Re-cycle Time | 0-7.0 sec. | |||||
Sealing Time | 0-1.8 sec. | |||||
Congealing Time | 0-7.0 sec. | 0-7.0 sec. | 0-7.5 sec. | 0-7.5 sec. | ||
Max. Temperature | 220~250 ℃ | |||||
Dimension | 44*36*20cm | 53*36*20cm | 68*36*20cm | 83*36.5*25 cm | 98*36*20cm | 108*36*20cm |
Weight | 21 KGS | 23.5 KGS | 27 KGS | 33.5KGS | 40KGS | 45KGS |
