100% made in Taiwan Electromagnet control Impulse sealer : Timer control to provide instant heating for quick sealing. Electromagnet offers an uniform pressure to save the power of operator. Impulse sealing, congealing time is necessary for perfect and durable sealing.
single sealing: PE, flat Nylon, flat Aluminum Foil
double-sides sealing (upper & lower both install one element): PE, Nylon, Aluminum Foil, Gusset bag (Coffee bean bag, tea leaves bag…) ,various materials of bags.
Wu-Hsing is a manufacturer and designer that offer the top quality various bags Sealers and Vacuum Sealers and best service in Taiwan to whole world.

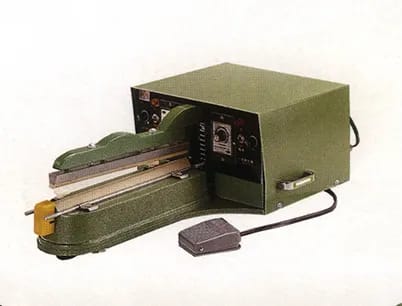

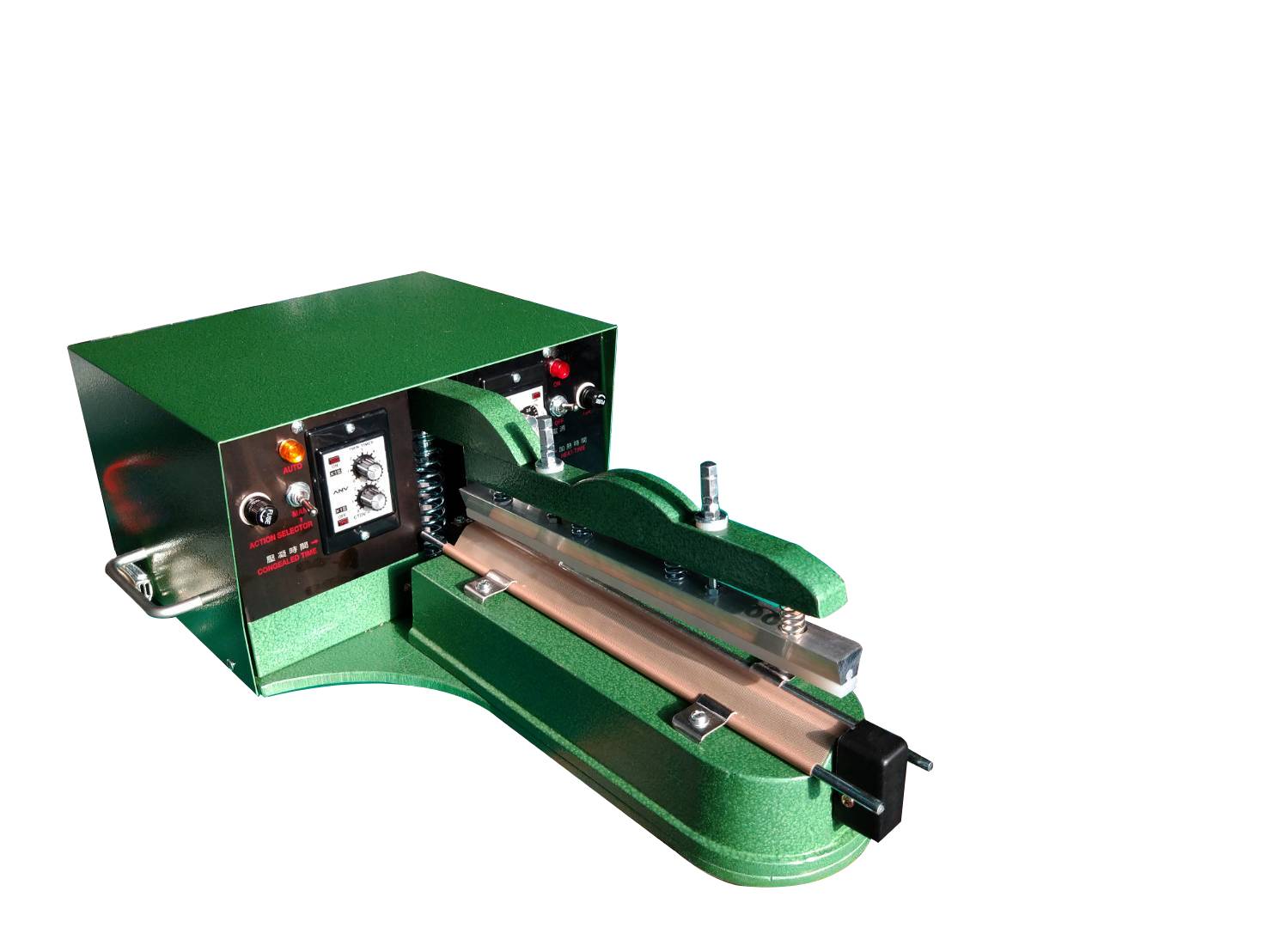

Wu-Hsing’s brand Electromagnet control side sealing Impulse sealer WHN-XXXYA are made by metal with painting. Equipped with one Electromagnet offers an uniform pressure to save the power of operator. Can set up 3 Timers (sealing time, congealing time, re-cycle time< waiting time>) to do auto sealing or manual by Pressing Foot Switch. Impulse sealing by Timer control, Congealing time is necessary for perfect and durable sealing.
AUTO sealing: after set up sealing time, congealing time, and re-cycle(waiting time), must put the object on the sealing bar within the setting re-cycle time, for example: 4 sec. the machine will wait for 4 sec., then upper sealing bar will press down to do sealing, after sealing, congealing time finish, then, wait for 4 sec., sealing bar will press down again…
MANUAL sealing: after set up sealing time, congealing time, press Foot Switch.
Sealing size: 300mm, 450mm, 600mm
Sealing time: 0 - 2 sec.
Congealing time: 0-6 sec.
Re-cycle time(waiting time): 0-6 sec.
Optional: touch Switch
Applications: food, electronics, chemicals, pharmaceutical, and hardware components industries
| Specification | WHN-300YA | WHN-450YA | WHN-600YA |
|---|---|---|---|
| Voltage | 110V/220V/240V | ||
| Power (Watt.) | 450W | 600W | 800W |
| Max. sealing | 300*2.7/5mm | 450*2.7/5mm | 600*2.7/5mm |
| Heating Time | 0-2 sec | ||
| Max. Temp | 220~250°C | ||
| Dimension | 62*36*20cm | 76*36*20cm | 92*36*20cm |
| Weight | 19KG | 21KG | 22KG |
