~100% Made in Taiwan~

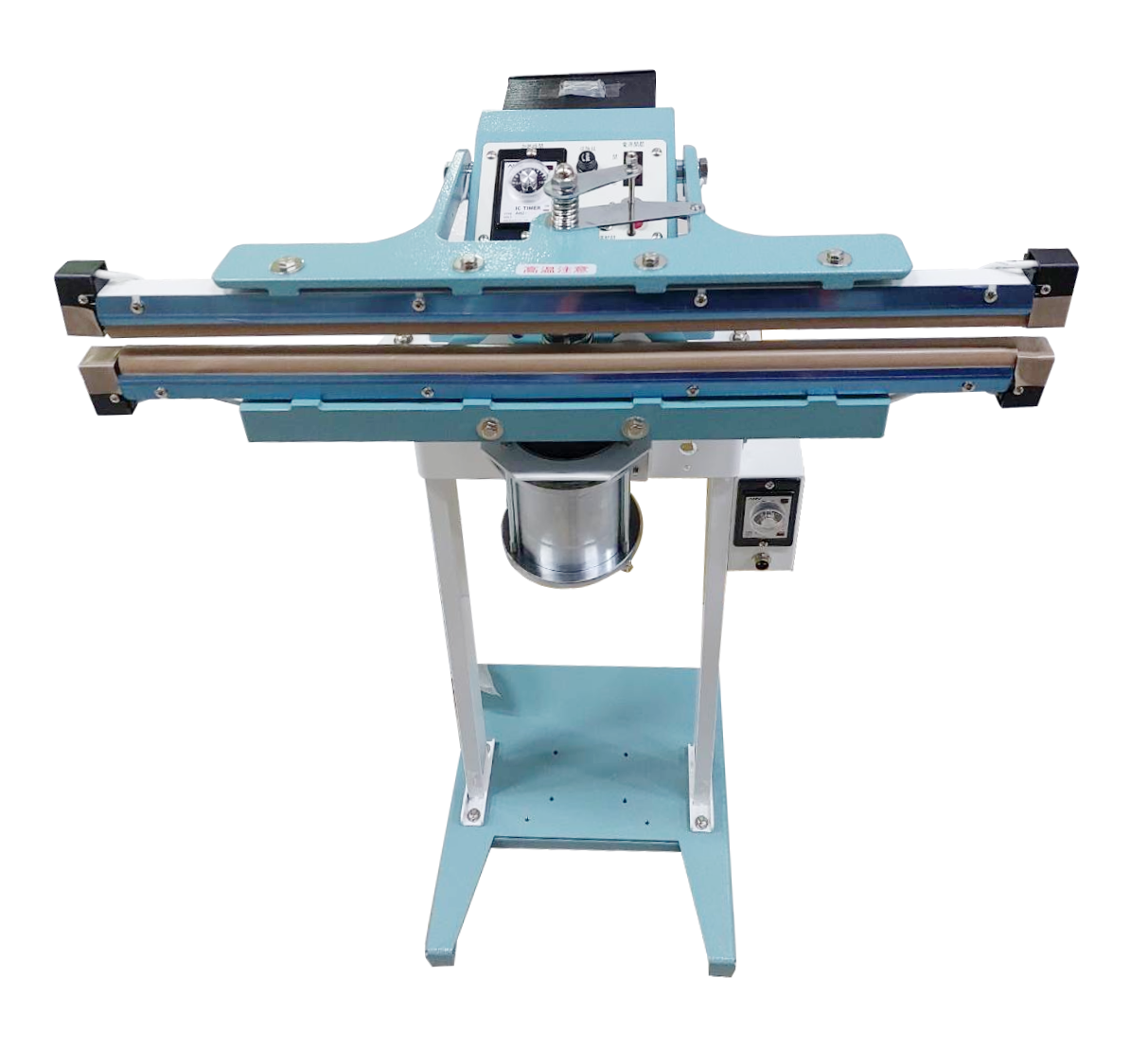

WU-HSING made Electromagnet control double-sides Impulse Sealers series are controlled by one stronger electromagnet offers an uniform pressure. Can save the power of operator.
• Manual operation by Foot switch: both hands to hold bag during sealing process
• Congealing time is necessary for perfect and durable sealing.
• Settings for sealing time and congealing time providing consistent seals each time
• Can be selected single sealing or double-sides sealing.
WU-HSING’s made Electromagnet control double-sides Impulse Sealers series WNS-XXXT are made by alum. casting housing with painting. Equipped with one sealing Timer (2 sec.) and congealing Timer(6 sec.). Installed the heating elements on both sides. A stronger electromagnet offers an uniform pressure for automatic sealing. Impulse sealing must have Congealing time.
Once correct settings have been adjusted (sealing time, congealing time), consistent seals will be maintained automatically. Press the Foot Switch lightly, then sealing & cooling will be finished easier. Ideal for need higher pressure package.
Sealing size: 300mm ~ 750mm
Sealing width: 5mm (both sides)
Sealing time: 0-2 sec.
Congealing time: 1-6 sec.
Single sealing: polyethylene (PE), Polypropylene (PP) and thermoplastic materials
Double-sides sealing: Alum. , Alum. Gusset bags.
Optional: Stainless steel (SUS#304), Date Imprinter, 10mm sealing width, extend pedestal + wheels, Emergency stop switch, protective cover of Electromagnet…
Related sealers: WNS-XXX (single sealing), WFS-XXX (powder, frozen products) WS-XXXD (direct heat)
Applications: food, electronics, chemicals, pharmaceutical, and hardware components industries
| Specification | WNS-305T | WNVS-305T | WNS-455T | WNVS-455T | WNS-605T | WNVS-605T | WNS-755T |
|---|---|---|---|---|---|---|---|
| Voltage | 110V/220V/240V | 110V/220V/240V | 110V/220V/240V | 110V/220V/240V | 220V /240V | 220V /240V | 220V /240V |
| Power (Watt.) | 1350W | 1350W | 1900W | 1900W | 2400W | 2400W | 3200W |
| Max. sealing | 300*5mm | 300*5mm | 450*5mm | 450*5mm | 600*5mm | 600*5mm | 750*5mm |
| Sealing Time | 0-2.0 sec | ||||||
| Max. Temp | 250°C | ||||||
| Dimension | 38*34*90cm | 625*340*1311mm | 53*34*90cm | 625*340*1311mm | 68*34*90cm | 625*340*1311mm | 83*34*90cm |
| Weight | 31KG | 40KG | 35KG | 42KG | 38KG | 45KG | 42KG |
