Wu-Hsing’s vertical type sealing ( WNVS) series is installed one stronger Electromagnet to suit a liquid & powder to save the power of operator. Single sealing: 5mm, 10mm Ideal for PE, PP, OPP,… Press the Foot Switch lightly, sealing & cooling will be finished easier. Optional device: Stainless steel, Longer stand, date coder
產品詳細資訊
Auto Sealer

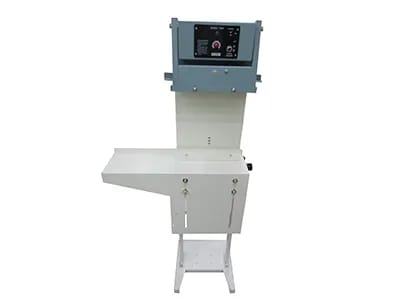

Vertically Electromagnet control Auto Sealer
WNVS Series
Vertically Electromagnet control Auto Sealer
Auto Sealer
Wu-Hsing designs vertical type sealing is for powder and liquid sealing to save the power of operator. Impulse sealing Equipped a Congealing time to offer a perfect sealing.
1. 90 degree of angle: comes with a big working table.
2. 45 degree of angle tilt: to avoid the powder & liquid to be out.
Impulse sealing:
Single: PE, PP, OPP, Nylon, Alum.
Double-sides:
Alum., Gusset ( folded) bag:
Constant heat sealing (direct heat): Nylon, Alum. Gusset (Folded) bag
| Specification | WNVS-300 | WNVS-450 | WNVS-600 | WNVS-305T | WNVS-455T | WNVS-605T |
|---|---|---|---|---|---|---|
| Voltage | 110V/220V/240V | |||||
| Power (Watt.) | 450 W | 600 W | 800 W | 1300 W | 2400 W | 3000 W |
| Max. sealing | 300*2.7/5mm | 450*2.7/5mm | 600*2.7/5mm | 300*5mm | 450*5mm | 600*5mm |
| Heating Time | 0-1.5 Sec. | 0-1.5 Sec. | 0-1.5 Sec. | 0-2 Sec. | 0-2 Sec. | 0-2 Sec. |
| Max. Temp | 250°C | |||||
| Dimension | 625*340*1311mm | |||||
| Weight | 45 KG | 47 KG | 50 KG | 47 KG | 49 KG | 53 KG |
