Band sealer

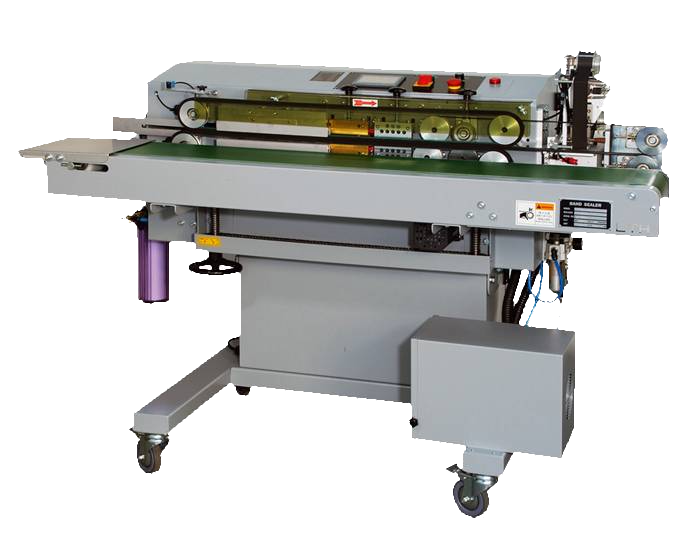

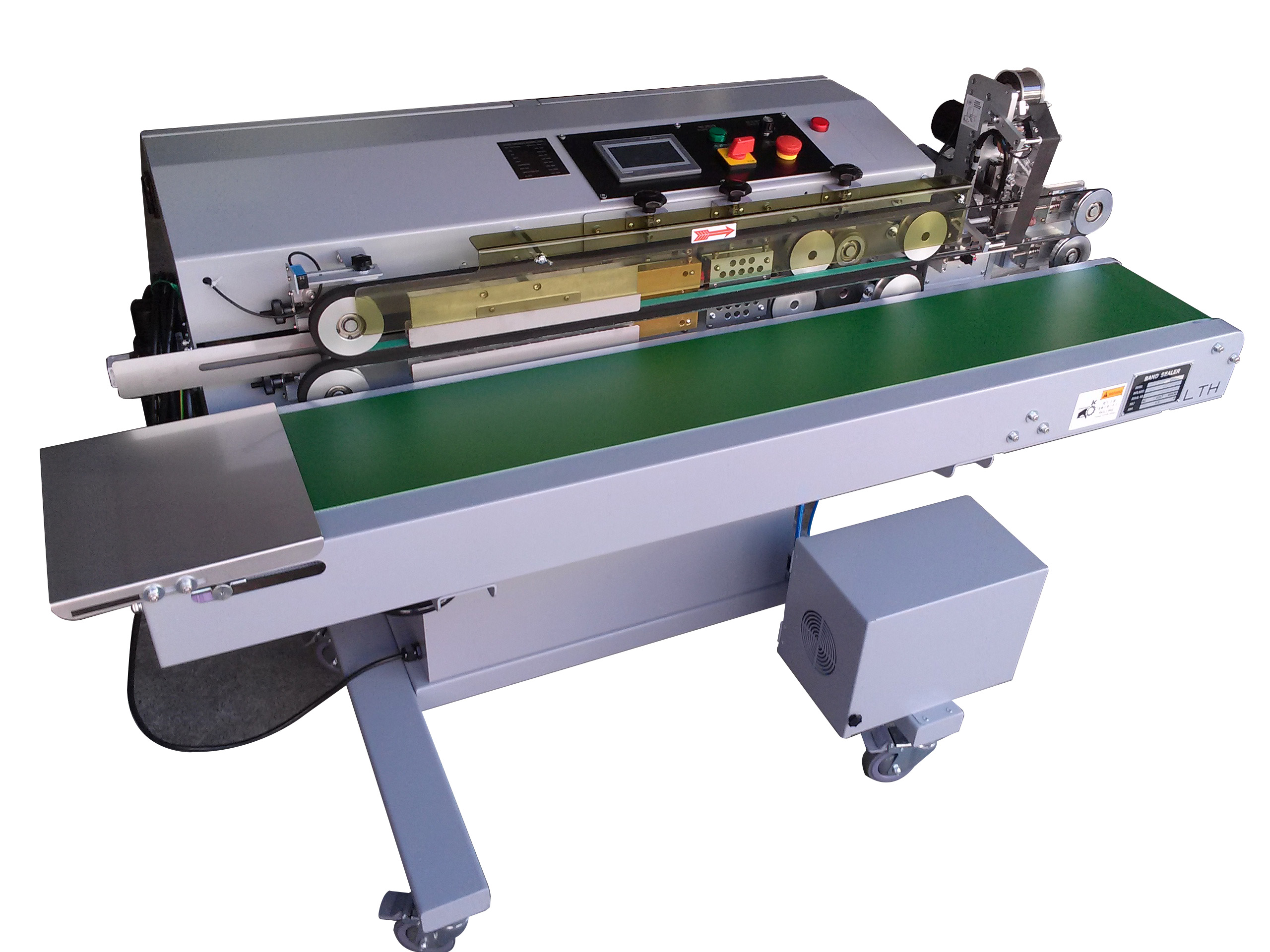

Nozzle type Vacuum Band Sealer
WSY-903V/VT
Nozzle type Vacuum Band Sealer
Band sealer
WU-HSING's vacuum band sealer with Vacuum 903V is Air-sucking & Sealing. 903VT is Air-sucking , Gas flushing & Sealing. The machine comes with Air extracting device by stainless made of Nozzle. Its Sealing head can be tilted 0~15 degree forward. The bag is sealed with air extracted to reduce the volume of bag and easier to be stocked. To keep the food longer time or save the space of parts. Use Band Sealer can save the packing time & working member.
Applicants:
- Food, Chemical, Hardware parts, Stationery...
No powder & liquids.
**This unit needs one Air Compressor (5-7kg/cm2)
Features:
- Loading weight of Conveyor. <5kg
- The distance between Bag opening with Products: 80mm
- Conveyor width: 200mm
- Sealing head can be tilted 0~15 degree forward
- Adjustable speed: 1-10M/per minute.
- Sealing width: 5mm or 10mm depends on materials (PE: 5mm, Nylon, Alum materials: 10mm)
- if >5KG, or longer bag, please use 905V/VT
- *Extra Air Compressor (5-7kg/cm2)
Optional devices:
- Stainless steel (SUS#304),
- 5-digit counter,
- Date Coder (solid ink or hot foil)
| Specification | WSY-903V/VT |
|---|---|
| Voltage | 110V/220V/240V single phase |
| Power | 1800W |
| Vacuum pump | Taiwan-Made Oil-Free 380W |
| Loading weight of conveyor | 5 KG |
| Width of conveyor | 200mm |
| Temperature range | 50-300℃ |
| Overall dimension (W×D×H) | 1560×720×1010mm |
| Weight | 110 KG |
