100% made in Taiwan: Date coding machine, Hand operated. Desk-top model equipped with a hand activation bar on the right side. Temperature control needs pre-heating time.Thermal transfer stamping principle via the Coding Foil ribbon.
is capable of 3 lines imprinting, and each line can hold 9 or 12 characters, printing MFG, EXP. LOT. weight ...etc. Ideal for any bags, paper box (folded), and labels..

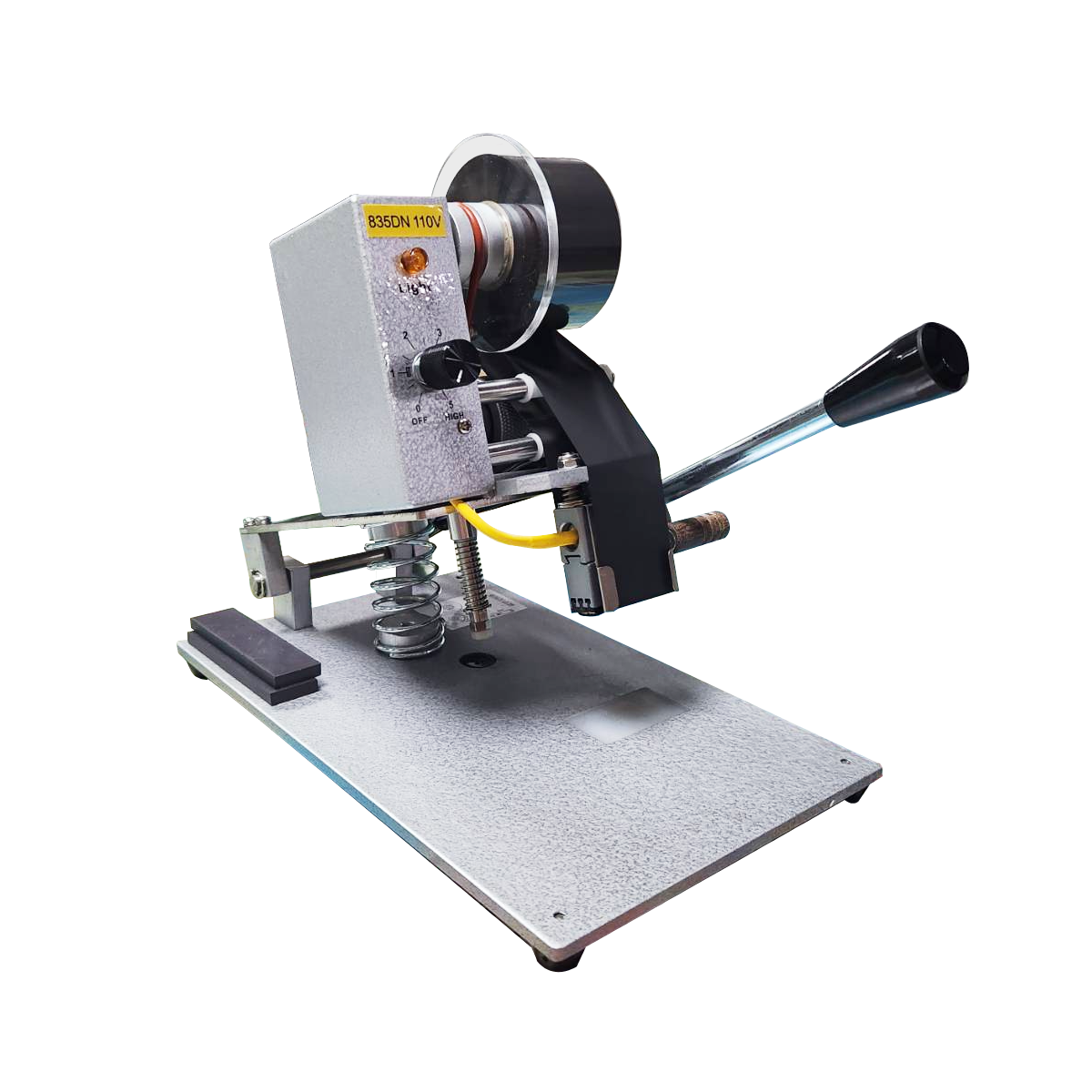

WU-HSING’s Hand operated Date Imprinter DH-8D series are table top. Equipped with a hand activation bar on the right side. Temperature control needs pre-heating time about 10 minutes. Its type-holder can be placed on both sides. Using the magnets to fix the object on the magnetic base for stamping at the same location. Suitable for any materials of bags, paper box(can be folded), labels…Easier to adjust 1-3 lines to save the ribbon length..
*Temperature: 50-200 degree C.
*Stamping lines: 1-3 lines
DH-825D
*Characters/line : 9 letter number /per line
*Font size: 3TC: 2*3mm
*Max. Stamping area: 12*23mm
DH-835D
*Characters/line : 12 letter number /per line
*Font size: 4TC: 2.5*4mmm (3TC: 2*3mm)
*Max. Stamping area: 12*33mm
*Appends: a character box(0-9, 0.-9., MFG, EXP, Rubber stopper, clip), Coding foil: 1 roll

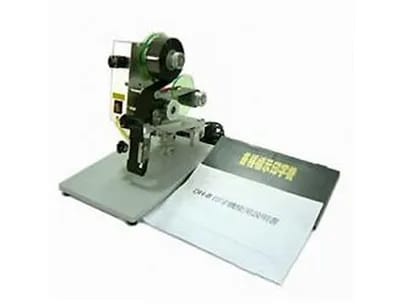

Related machine: DH-8 (be installed on Sealers), DH-835MA (auto type), DH-8F (Foot operated)
Available: frozen Coding foil Ribbon
Applications: food, electronics, chemicals, pharmaceutical, and hardware components industries
| Specification | DH-825D(T3) | DH-835D(T4) |
|---|---|---|
| Voltage | 110V/220V/240V | |
| Type Size | 2*3mm | 2.5*4mm |
| Max. Printing Area | 13*24mm | 14*34mm |
| Lines of letter | 3 lines*9 letter | 3 lines*12 letter |
| Preheating Time | 10 min | |
| Ribbon Width | 25mm | 35mm |
| Weight | 3.5KG | 4KG |
