This sealer is especially for arc sealing for matching Shrink Tunnel. It makes 0.32mm of seal width and cuts off excess edge of shrink wrap films. Half-circle. It can be used for making dome bags.
產品詳細資訊

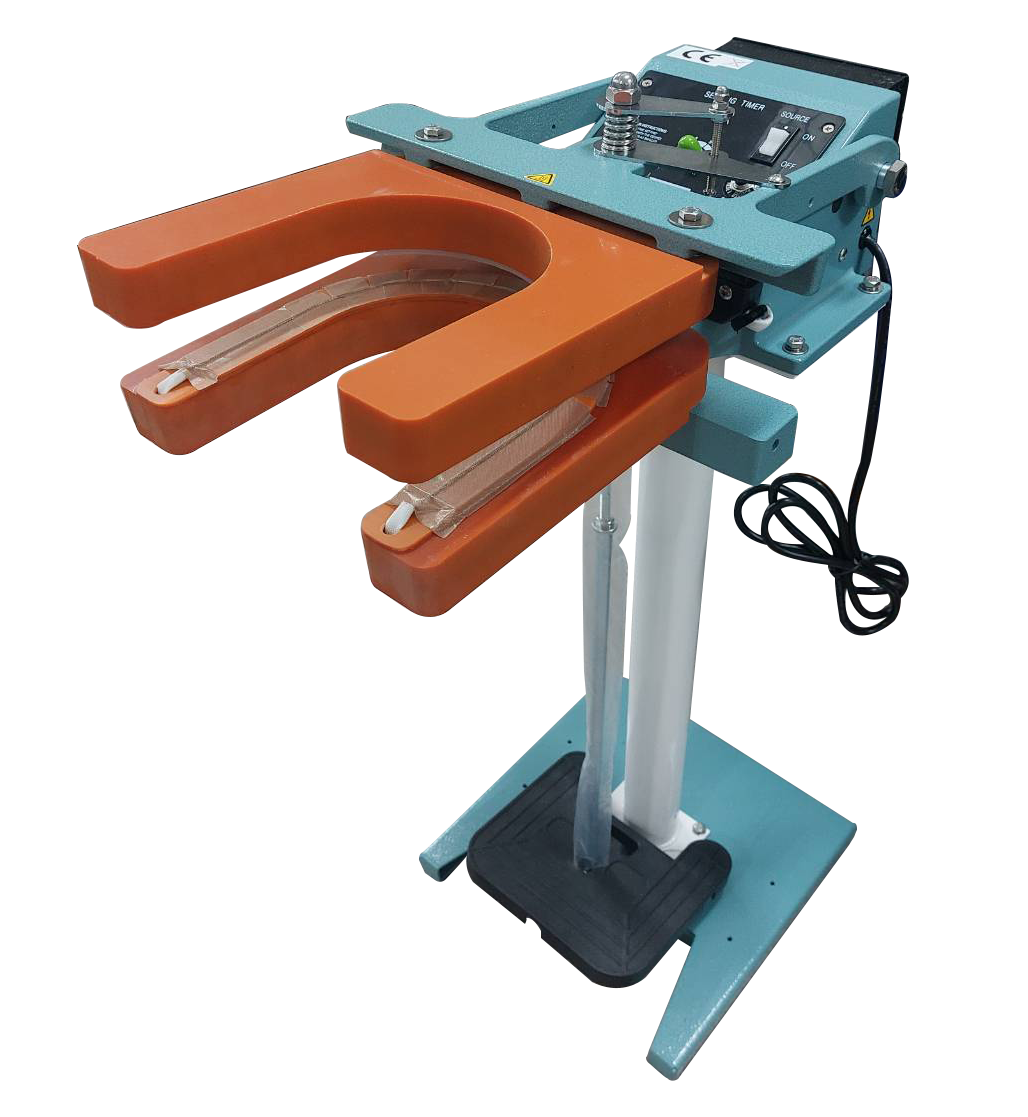

Foot Type Sealer
Arc-shaped sealing
W-R Series
Arc-shaped sealing
Foot Type Sealer
Wu-Hsing is a manufacturer and designer that offer the top quality various bags Sealers and Vacuum Sealers and best service in Taiwan to whole world.
Wu-Hsing brand Foot Sealer made in steel and alum. Casting with powder coating, is ideal for sealing large bags. By foot operated, it is easier for user
to operate machine by foot, 2 hands hold the bags well operated to make an excellent and perfect sealing..
For Impulse sealing, is sealing Timer control. Congealing time is necessary to an excellent and perfect sealing..
*Single sealing: PE, PP, OPP, PVC, POF …plastic materials.
*Double-sides sealing: Alum. Gusset (folded) bags
Optional device: )
| Specification | W-200R | W-300R | W-400R | W-500R |
|---|---|---|---|---|
| Voltage | 110V/220V/230V/240V | |||
| Power (Watt.) | 450W | 600W | 800W | 1000W |
| Maximum Range | 250*80*0.32mm | 340*170*0.32mm | 430*210*0.32mm | 570*170*0.32mm |
| Heating Time | 0 - 1.5 sec. | |||
| Max. Temp | 250 ℃ | |||
| Dimension | 47*34*90cm | 51*37*90cm | 51*46*90cm | 53*62*90cm |
| Weight | 20 KG | 21 KG | 23 KG | 25 KG |
