Foot Type Sealer
free throat-obstruction with Cutter


WN-BC Series
free throat-obstruction with Cutter
Foot Type Sealer

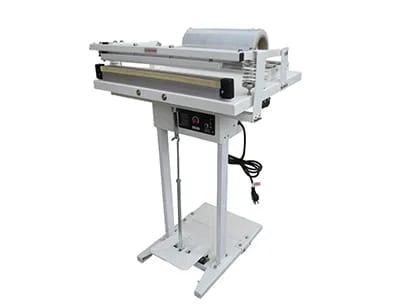

Wu-Hsing Made newly type foot sealer (WN-BC) made in steel with powder coating. Impulse sealing comes with a sliding cutter has an obstruction free throat allowing the use of roll-dispensed material to pack and seal.

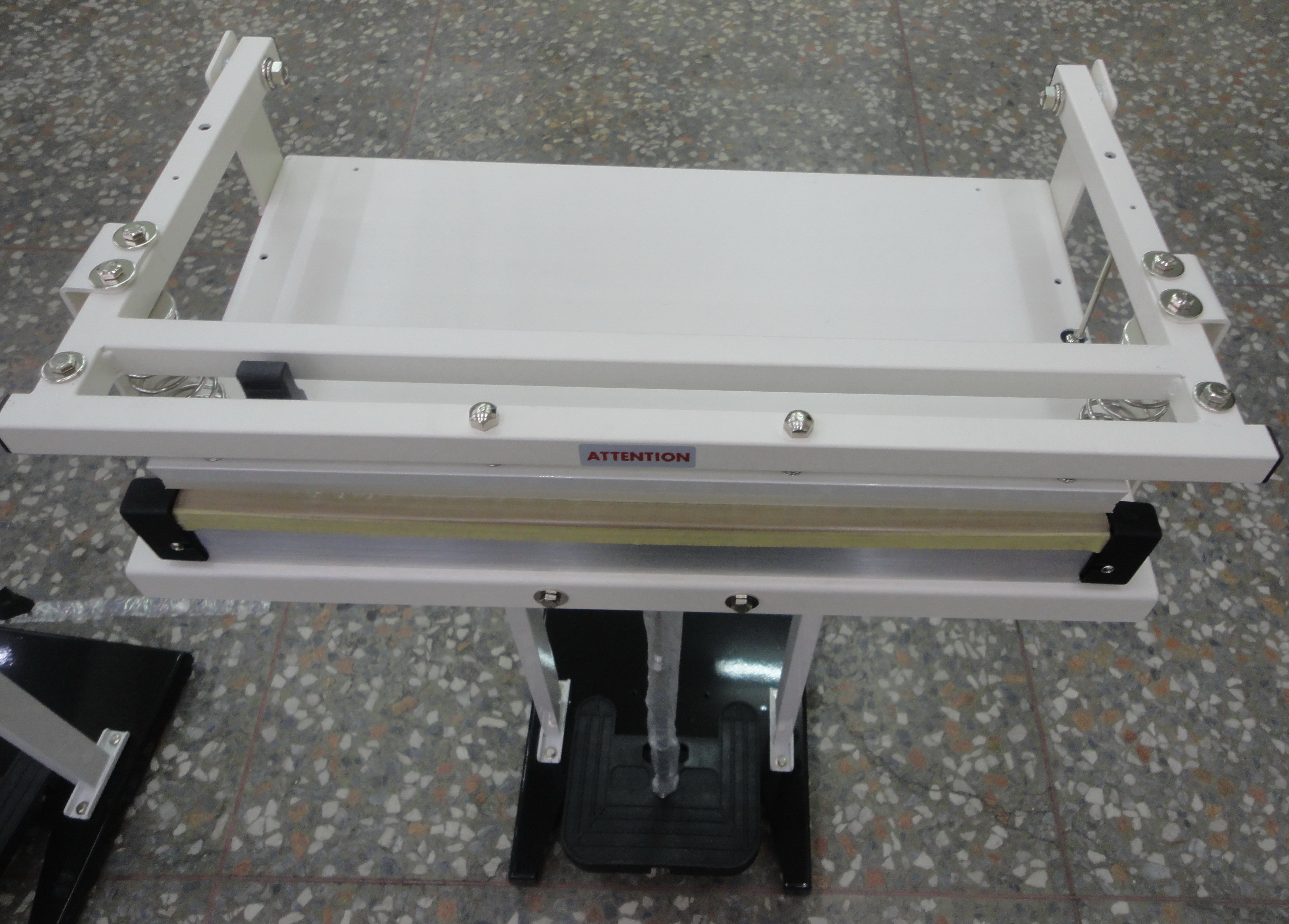

Wu-Hsing made new foot type sealer (WN-BS) is metal housing with painted. Its back has a big working table. Impulse sealing has an obstruction free throat for smooth feeding in front and back side, no hindered. Can be sealed from back or front side.
Available sealing width: 2.7mm, 5.0mm. 0.8mm for sealing & melting.
Ideal for incompact package sealing (such as inner tea bags, Diaper, toilet paper).

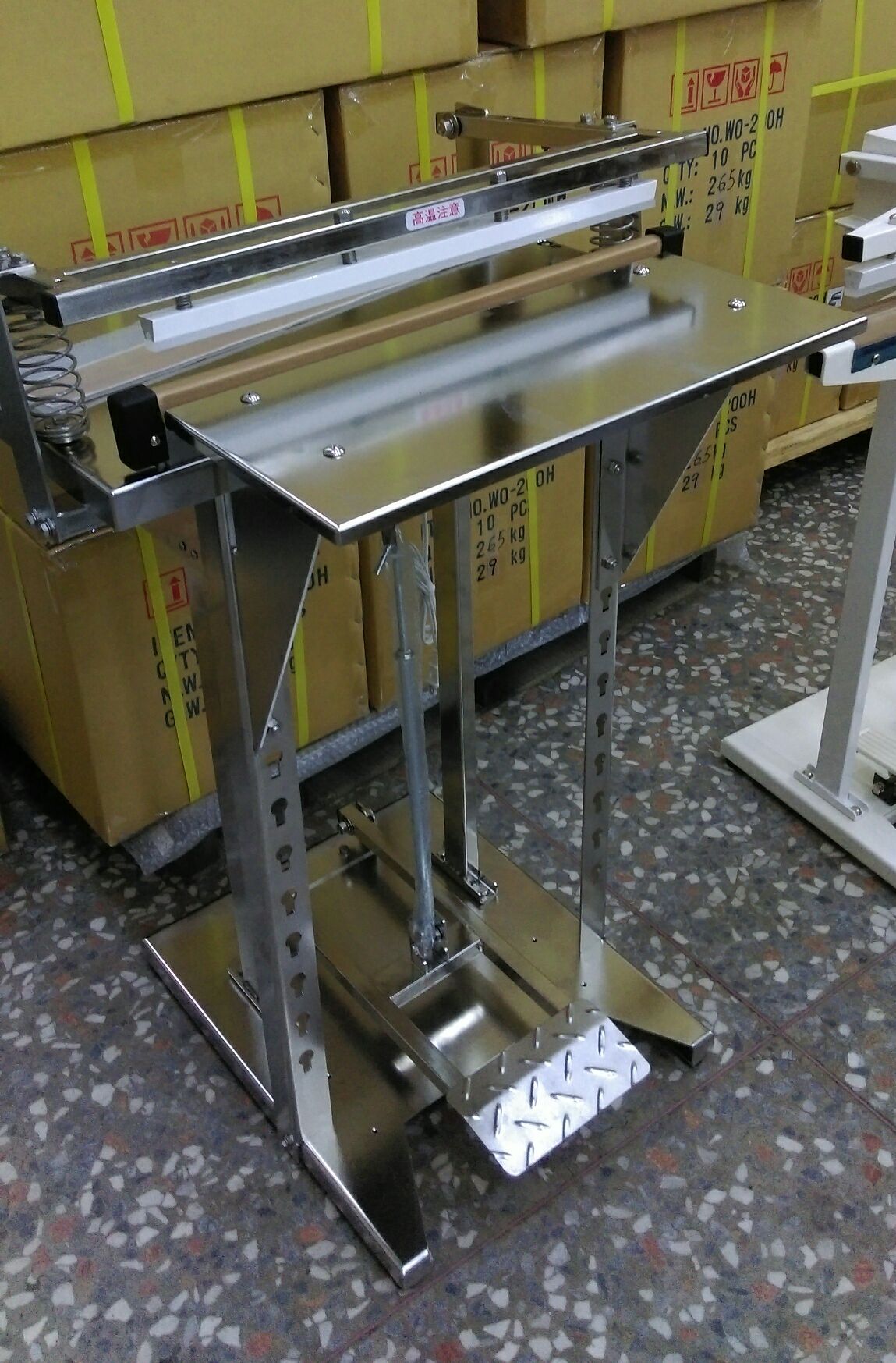

Optional device: Stainless steel (SUS #304) , 10mm sealing, Height of sealing bar , Cylinder control
Specification | WN-300BC | WN-450BC | WN-600BC |
---|---|---|---|
Voltage | 110V/220V/230V/240V | ||
Power (Watt.) | 600W | 800W | 1000W |
Max. sealing | 300*2.7/5mm | 450*2.7/5mm | 600*2.7/5mm |
Heating Time | 0-1.5 sec | ||
Max. Temp | 250°C | ||
Dimension | 44.5*34*92cm | 59.5*34*92cm | 74.5*34*92cm |
