Foot Type Sealer
free throat: Front and Rear


WN-BS Series
free throat: Front and Rear
Foot Type Sealer

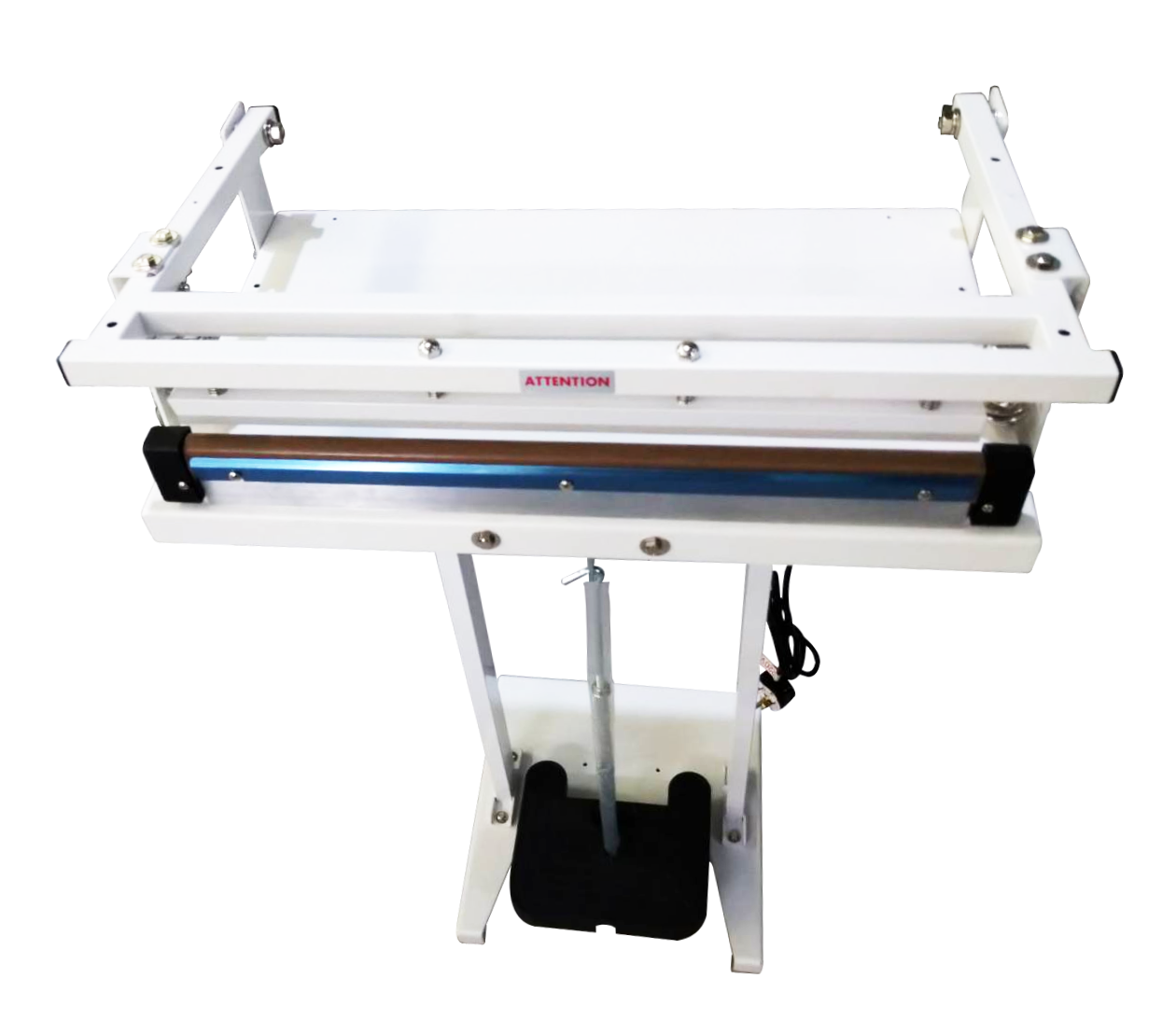

Wu-Hsing made new foot type sealer (WN-BS) is metal housing with painted. Its back has a big working table. Impulse sealing has an obstruction free throat for smooth feeding in front and back side, no hindered. Can be sealed from back or front side.
Wu-Hsing made new foot type sealer (WN-BS) is metal housing with painted. Its back has a big working table. Impulse sealing has an obstruction free throat for smooth feeding in front and back side, no hindered. Can be sealed from back or front side.
Available sealing width: 2.7mm, 5.0mm. 0.8mm for sealing & melting.
Ideal for incompact package sealing (such as inner tea bags, Diaper, toilet paper).

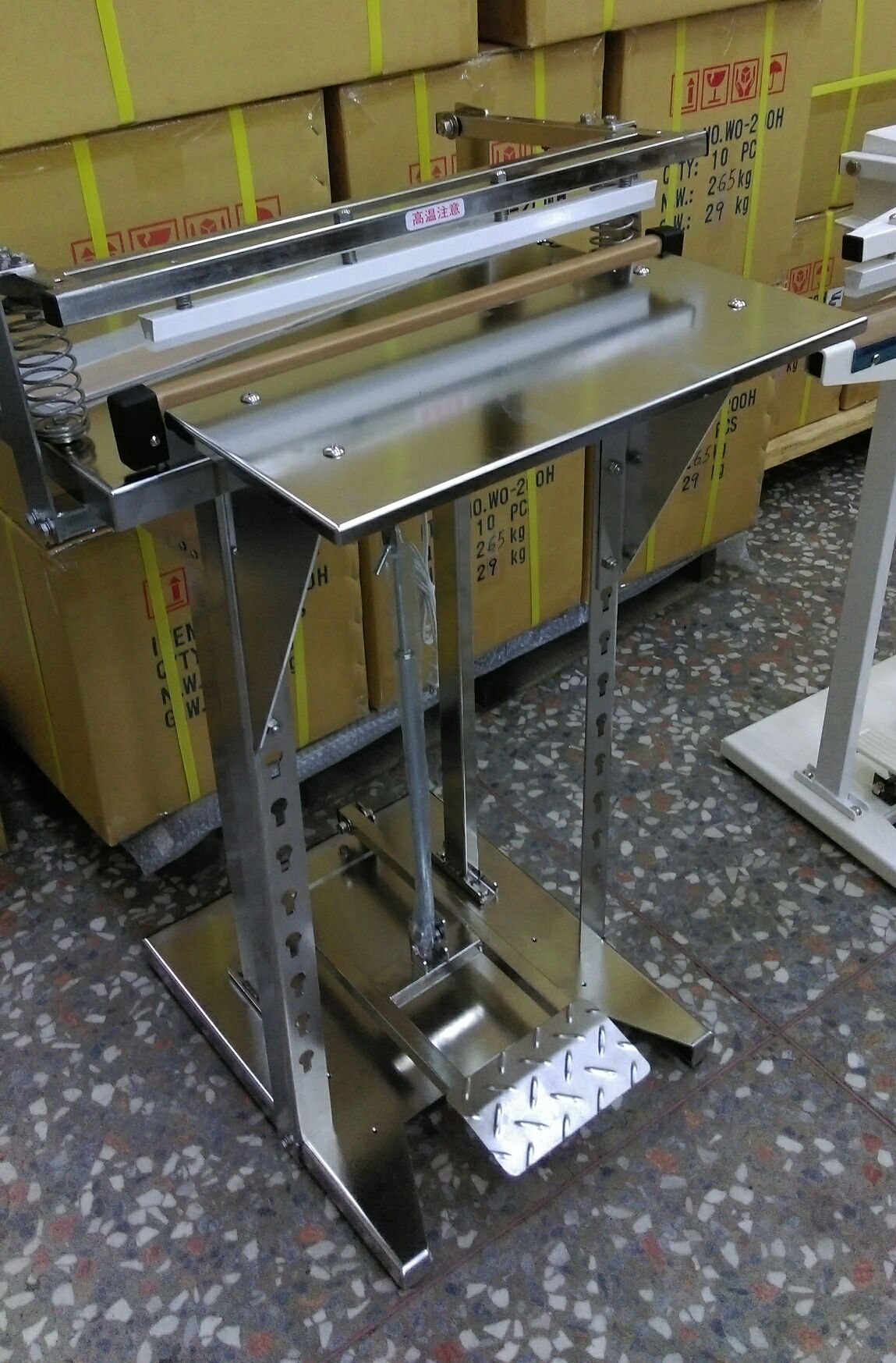

Optional device: Stainless steel (SUS #304) , 10mm sealing, Height of sealing bar , Cylinder control
Specification | WN-300BS | WN-450BS | WN-600BS |
---|---|---|---|
Voltage | 110V/220V/230V/240V | ||
Power (Watt.) | 600W | 800W | 1000W |
Max. sealing | 300*2.7/5mm | 450*2.7/5mm | 600*2.7/5mm |
Heating Time | 0-1.5 sec. | ||
Max. Temp | 250°C | ||
Dimension | 44.5*34*92cm | 59.5*34*92cm | 74.5*34*92cm |
Weight | 16KG | 18KG | 21KG |
