Foot Type Sealer
free throat:Twin Lines Sealing


WN-BT Series
free throat:Twin Lines Sealing

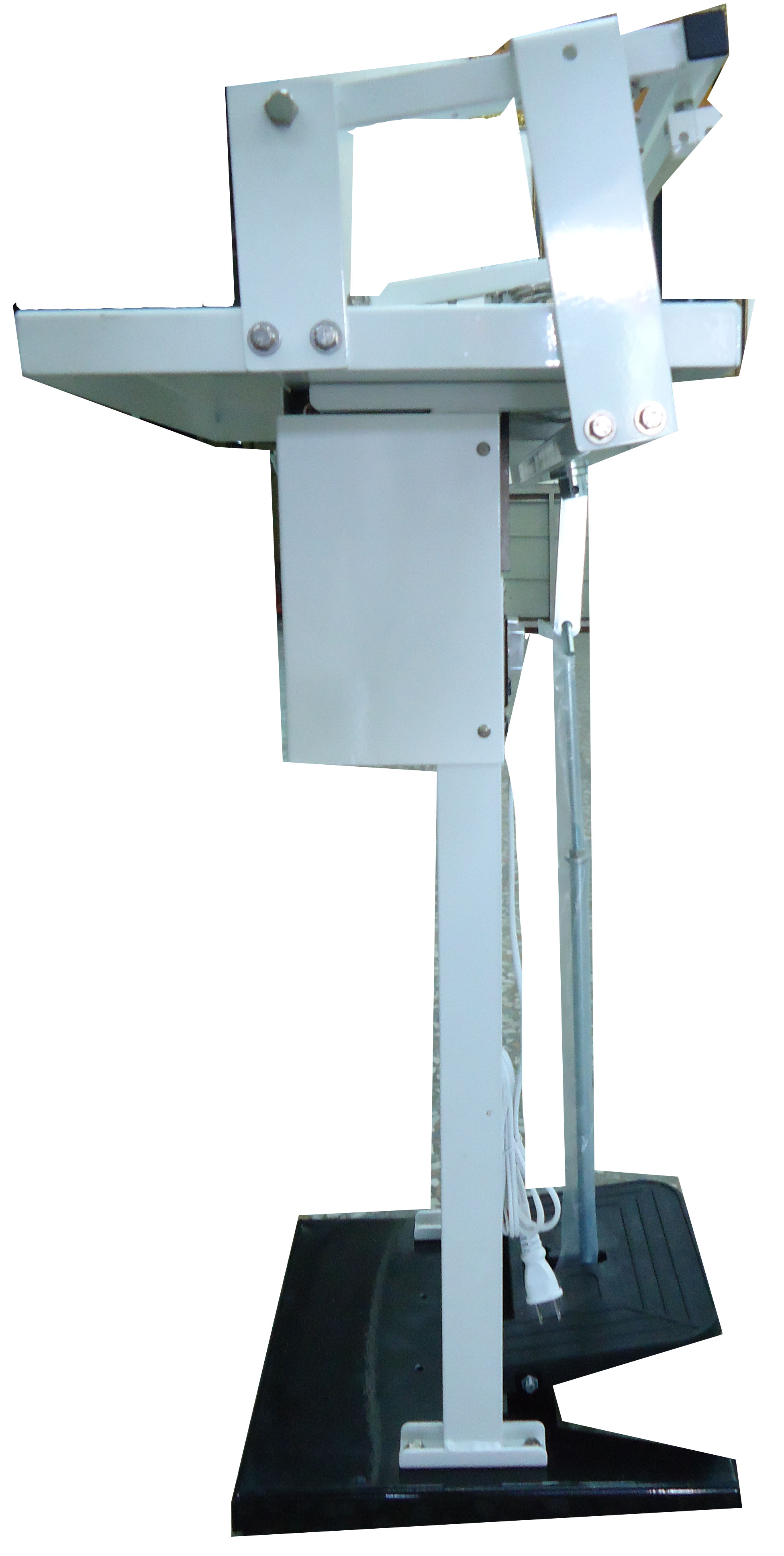

Foot Type Sealer
Wu-Hsing made Foot Type Impulse Sealer-Twin Sealing (Bottom) comes with 2 parallel heating elements. Flat element is for sealing, round element is for melting the edge of bags. Equipped with a flat & a round element, or 2 flat elements through 2 timers & 2 transformers control.
Wu-Hsing made new foot type sealer (WN-BS) is metal housing with painted. Its back has a big working table. Impulse sealing has an obstruction free throat for smooth feeding in front and back side, no hindered. Can be sealed from back or front side.
Available sealing width: 2.7mm, 5.0mm. 0.8mm for sealing & melting.
Ideal for incompact package sealing (such as inner tea bags, Diaper, toilet paper).
Optional device: Stainless steel (SUS #304) , 10mm sealing, Height of sealing bar , Cylinder control
Specification | WN-300BT | WN-450BT | WN-600BT |
---|---|---|---|
Voltage | 110V/220V/230V/240V | 110V/220V/230V/240V | 220V/230V/240V |
Power (Watt.) | 1300W | 2400W | 3200W |
Max. sealing | 300*2.7/5mm+300*0.8mm | 450*2.7/5mm+450*0.8mm | 600*2.7/5mm+600*0.8mm |
Heating Time | 0 - 2 sec. | ||
Max. temperature | 250°C | ||
Dimension | 41.5*37*91cm | 56.5*37*91cm | 71.5*47*91cm |
Weight | 28KG | 30KG | 35KG |
