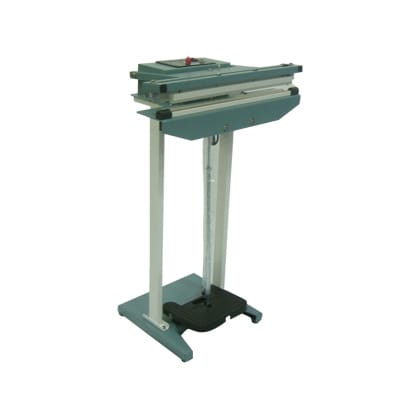

100% Made in Taiwan Foot impulse Sealers with Cutter (WN-C) is made in steel with powder coating. By foot control, to operate machine by hands to feed the bags and get an excellent and perfect sealing. 2 kinds of choice: distance from the sealing line to rear machine spring: 40mm or 200mm... (free throat type: WN-BC)
產品詳細資訊






Wu-Hsing is a manufacturer and designer that offer the top quality various bags Sealers and Vacuum Sealers and best service in Taiwan to whole world.

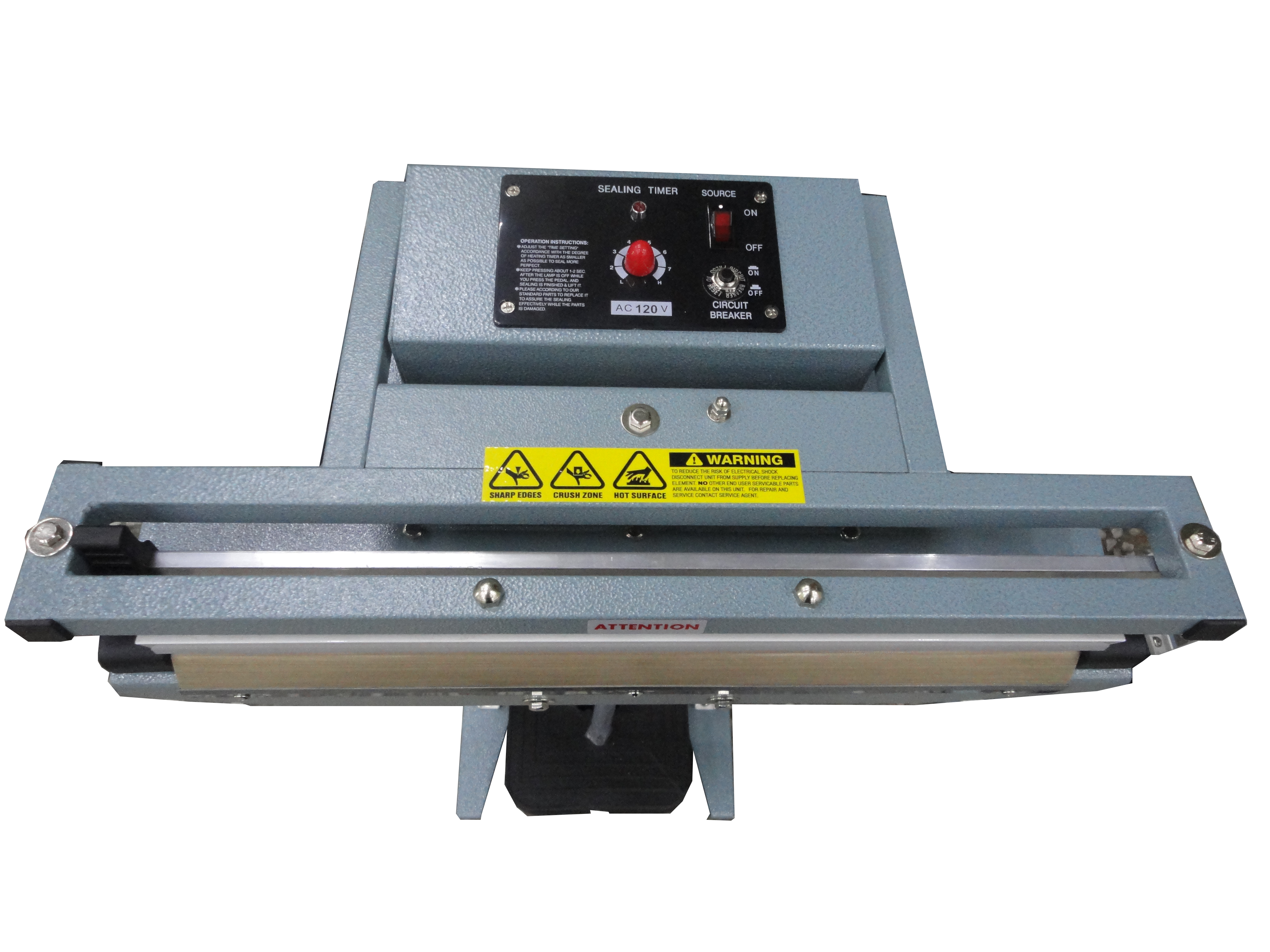

Wu-Hsing brand WN-xxxC series foot operated Impulse sealer with Cutter are made in steel with powder-coated, electronic timer control. Impulse sealing requires 3-5 second congealing time. Manual slide the cutter to cut approximately 4cm from the bag opening to rear spring after the congealing time. It is equipped with a high-capacity transformer for high-volume use. It stops heating at the set sealing time, ensuring safety and durability. Hold the bag with both hands and press the foot pedal all the way down. When the sealing light turns off, heating stops. Continue pressing the pedal to cool the bag before manually pressing the sliding cutter to cut the bag.
Available sizes: 300mm to 900mm (WN-300C to WN-900C).
Sealing time: 0-1.5 seconds
Sealing line: 2.7 or 5mm
Distance to bag opening - allows for a 1.7-1.9cm bag edge.
Single sealing is suitable for PE, PP, OPP, plastic bags.
Optional : 10mm sealing width, stainless steel body, casting foot pedal, 20cm bag edge clearance.
Similar machines: WN-BC series (free throat)
Applications: Food, electronics, hardware, chemicals,
• APPLICIANTS: food, chemicals, hardware parts…
Specification | WN-300C | WN-750C | WN-600C | WN-450C |
---|---|---|---|---|
Voltage | 110/220/240V | |||
Power (Watt.) | 450W | 1000W | 800W | 600W |
Max. sealing | 300 *2.7/5mm | 750*2.7/5mm | 600*2.7/5mm | 450*2.7/5mm |
Heating Time | 0-1.5 sec | |||
Max. Temper | 250 ℃ | |||
Dimension | 38*34*88cm | 83*34*88cm | 68*34*88cm | 53*34*88cm |
Weight | 17 KGS | 24 KGS | 22KGS | 19 KGS |
Edge of Bag after cutting | 17mm-19mm |
