Available size: 100mm, 200mm, 300mm, 400mm, 520mm Impulse sealing with electronic control.
產品詳細資訊
Hand type sealer
Hand type
WO-H Series
Hand type
Hand type sealer

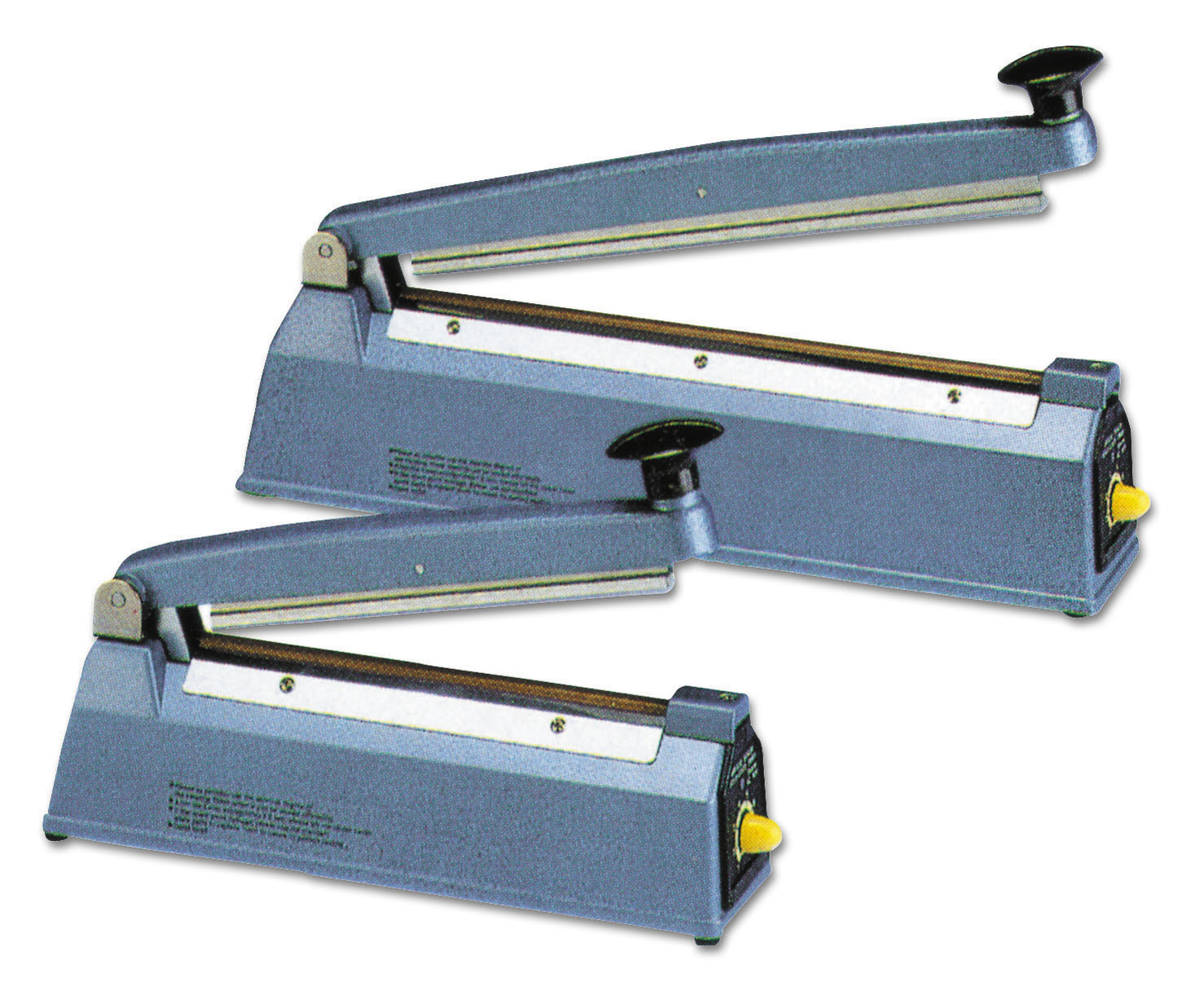

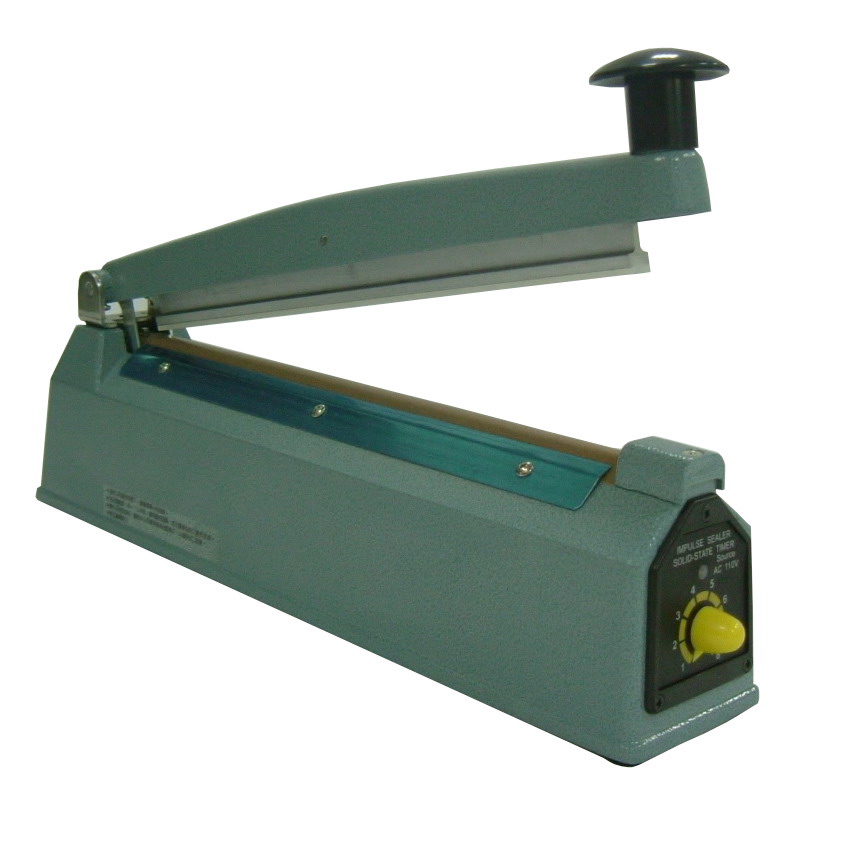

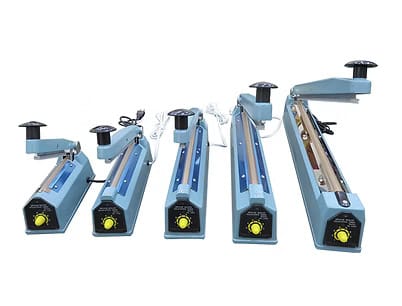

WU-HSING’s Hand type Impulse sealer (WO-100H~ 520H) is made of aluminum housing with powder coating. Impulse sealing is controlled by a Timer to make excellent air and water tight sealing on different materials. Impulse sealing is ideal for sealing PE, PP. OPP, PVC and most plastic materials.
Sealing width: 2mm (0.6mm for sealing & melt)
Sealing time: 0-1.5 sec.
Congealing time is necessary for perfect sealing.
Optional: 5mm, 0.6mm
Sealing with Cutter: WK-200HC~WK-500HC
Applications: food, electronics, chemicals, pharmaceutical, and hardware components industries
| Specification | WO-100H | WO-200H | WO-300H | WO-400H | WO-520H |
|---|---|---|---|---|---|
| Voltage | 100V/110V/220V/240V | ||||
| Power(Watt.) | 180W | 290W | 370W | 460W | 600W |
| Max. sealing | 100*2mm | 200*2mm | 300*2mm | 400*2mm | 520*2mm |
| Dimension | 22*7*20cm | 32*8*21.5cm | 43*8*25.5cm | 53*9*27cm | 65*9*28cm |
| Weight | 1.8KG | 2.65KG | 3.3KG | 4.7KG | 6KG |
| Specification | WO-105H | WO-205H | WO-305H | WO-405H | WO-525H |
|---|---|---|---|---|---|
| Voltage | 100V/110V/220V/240V | ||||
| Power(Watt.) | 230W | 380W | 430W | 720W | 850W |
| Max. sealing | 100*5mm | 200*5mm | 300*5mm | 400*5mm | 520*5mm |
| Dimension | 22*7*20cm | 32*8*21.5cm | 43*8*25.5cm | 53*9*27cm | 65*9*28cm |
| Weight | 2.0KG | 2.8KG | 3.9KG | 5.25KG | 6.5KG |
