100% made in Taiwan L Bar shrink wrap sealer, impulse sealing with Timer control, L type sealing with 0.32mm width for sealing and melting offers one step acting sealing of centerfold PVC, POF, PE film. Can also work with a Heat gun for simple shrink wrap, or shrink tunnel for a fast shrink wrap packing. Adjustable working table (up & down 12cm) and Film Roller (in & out). L bar sealers packages can be against from dust, moisture, and fingerprints for any shape. Can prevents opening and damage after shrink packing.
產品詳細資訊





Wu-Hsing is a manufacturer and designer that offer the top quality various bags Sealers and Vacuum Sealers and best service in Taiwan to whole world.

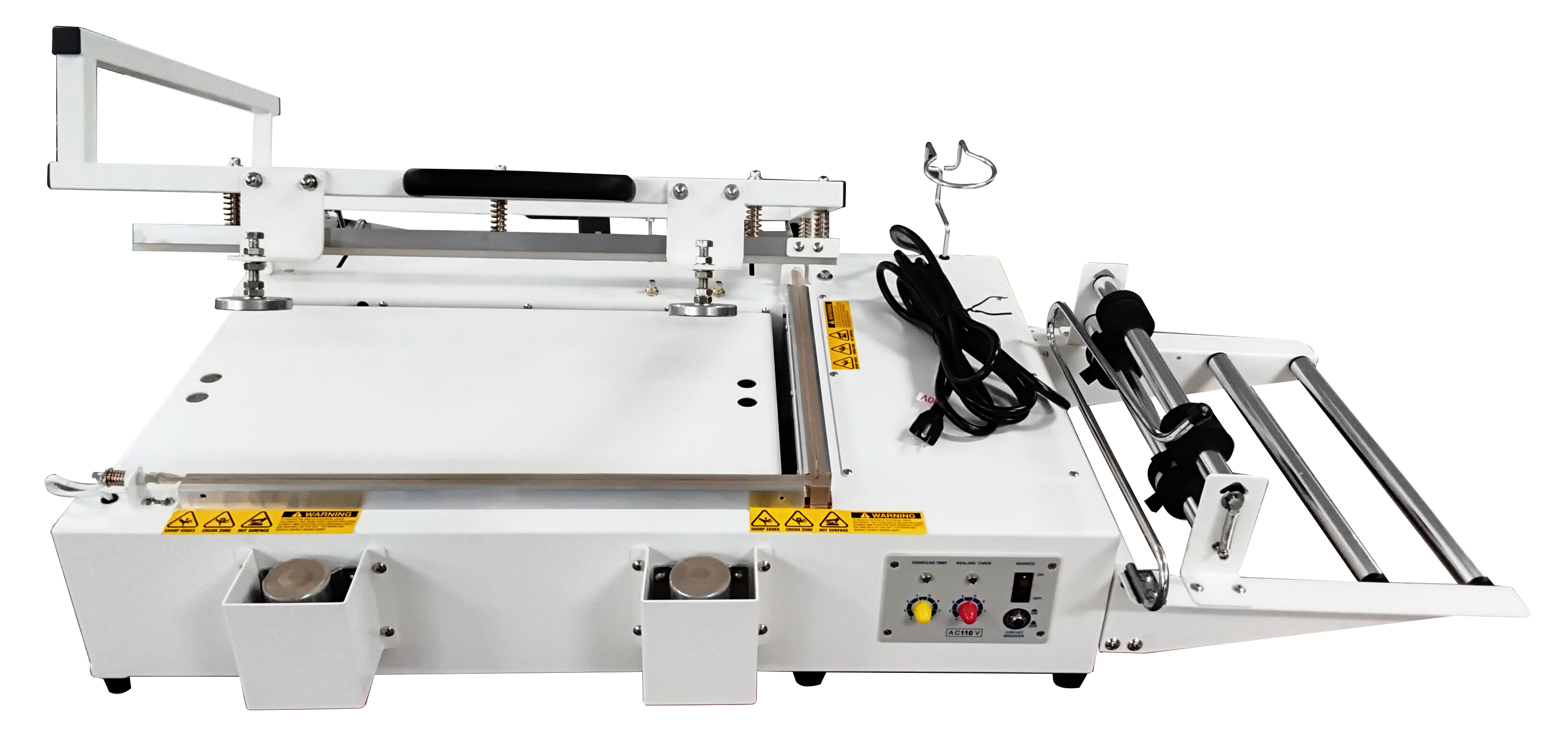

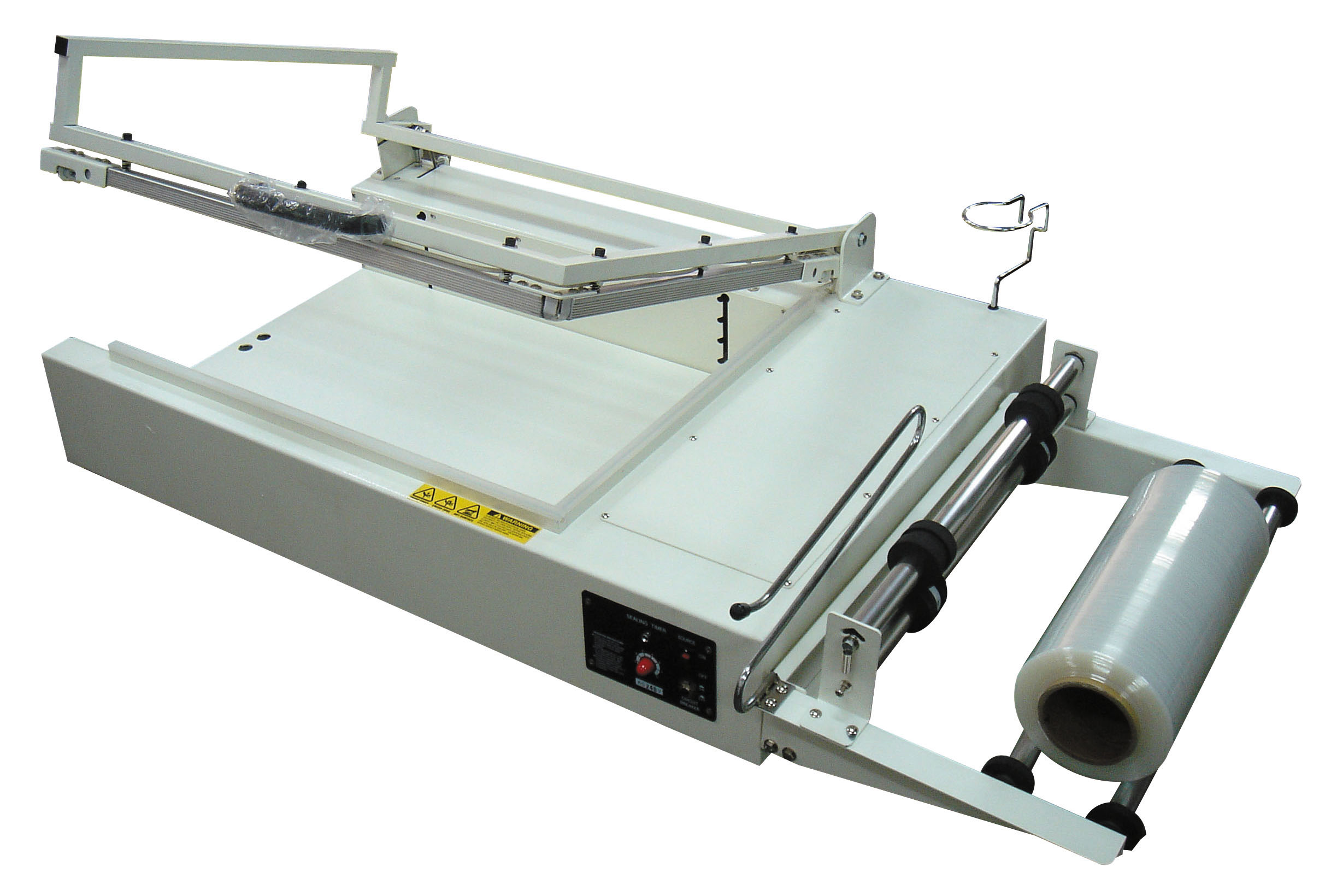

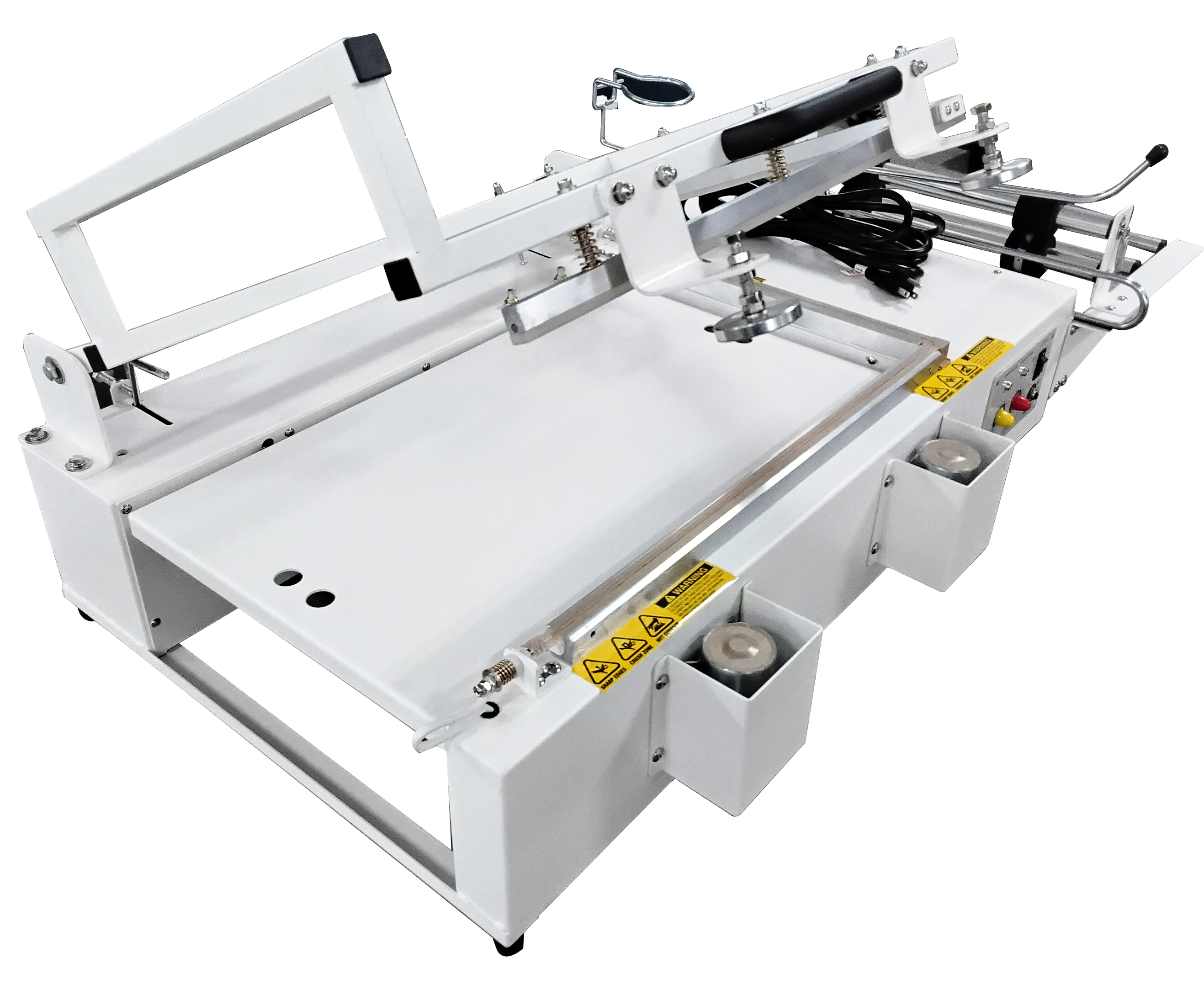

WU-HSING’s L Bar Sealers W-XXXA/LA are designed for one step to seal and cut centerfold film to be L shape sealing for shrink wrapping. Steel construction for heavy duty use and durability, adjustable height of working table for sealing packages of different heights, Film Roller can be adjusted front and back. Equipped with film roller, Perforator system (twin perforating hole punch), film separator, and heat gun holder (built in electrical outlet).
Set the timer, Insert the object between the two layers of centerfold film and press down the sealing bar. Then, slightly pull the film or package away.
Sealing time: 0-1.5 sec.
Sealing range: W-350L(A): 350*500mm, W-500L(A): 500*650mm, W-650L(A): 650*800mm
Heating element size: 0.32*3.2mm
Adjustable working table: 0-12 cm( for sealing packages of different heights, Sealing line can be situated in the middle of the packaging.)
Ideal for PVC, POF, PE shrink film.
W-L series: operated by Hand pressing
W-LA series: control by 2 electromagnets by Hand pressing, can save power of operator.
W-LAS series: control by 2 electromagnets by Hand pressing

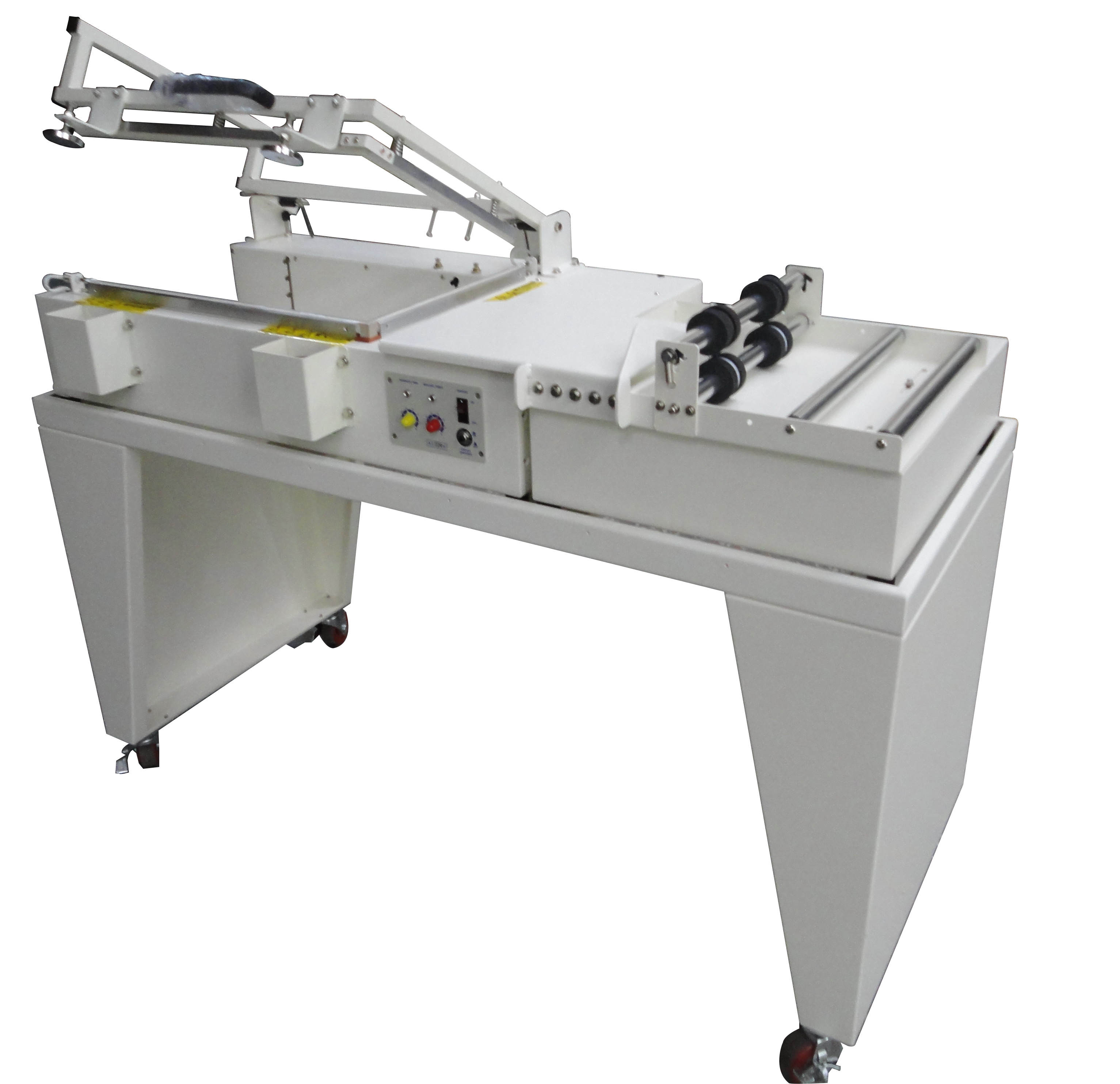

comes with a stand and 4 brake wheels, easier to be moved.
Optional: Electromagnet control, stand…
Related machines: WH-450L/600L, CHL-5050B/6060B, CHL-4550A(auto type)
Applicants: Food, Gifts, Catering, Publishing industry, Stationery industry, Artwork,...
Specification | W-350L (A) | W-500L (A) | W-650L (A) |
---|---|---|---|
Voltage | 110V/220V/240V | ||
Power (Watt.) | 1.9KW | 2.8KW | 3.2KW |
Max. sealing | 350 *500*0.32mm | 500*650*0.32mm | 650*800*0.32mm |
Sealing Time | 0-1.5 sec | ||
Max. Temp | 250°C | ||
Dimension | 1250*600*330mm | 1410*750*330mm | 1520*670*330mm |
Weight | 44KG | 52KG | 58KG |
