LVV Nozzle type for clean room utilizing nozzle technology, it precisely extracts air from packaging bags, ensuring airtight sealing, extended shelf life, and maintaining cleanliness. Designed to meet cleanroom standards, it is ideal for industries with high standards such as electronics, semiconductors, medical, and precision instruments.
產品詳細資訊

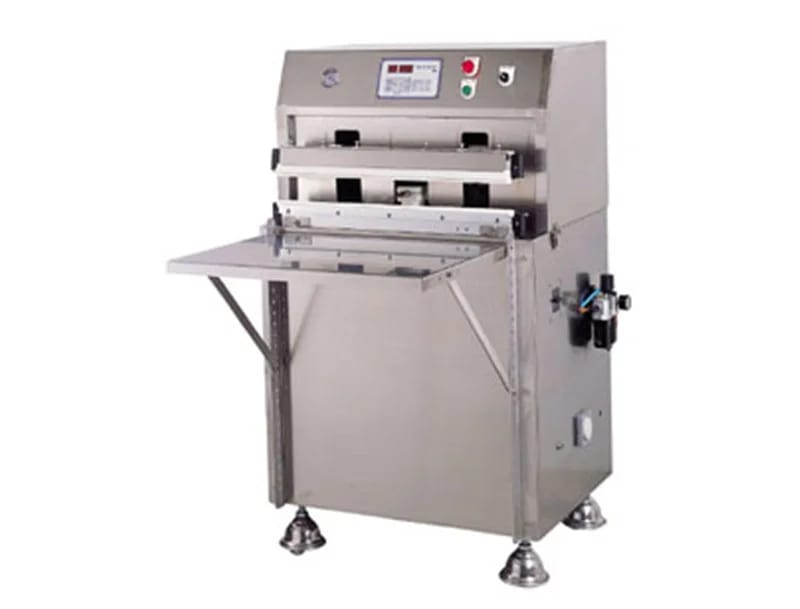

WU-HSING’s Floor model Stainless housing Nozzle Type Vacuum Sealer: LVV-6510T, LVV-8510T is External Extraction model. Made in Stainless steel (SUS#304) is suitable for clean room. Equipped with a stainless steel retractable nozzle and an Oil-free pump, Impulse sealing with 10mm of heating element. Operated by Start Switch or Foot Switch.
To reduce the volume for easier storage and transportation, extend shelf life, antioxidant and keep the contents securely in place. Not suitable for powders and liquids.
1. Smart PC Board control: 20 programs with digital control panel
2. Over-heating warning
3. Double-sides sealing 10mm is good for thicker and 4 layers of Alum. Bags.
4. Oil-less pump DP-120 (380W)
5. Pneumatically operated –Connect to extra air Compressor(6-7kg/cm2)
6. Any materials (thicker PE can be kept about 7-10 days)
7. Loading weight of Working Table: <10KGS
8. Clean room using.
Ideal for solid & dry goods vacuum & sealing or vacuum ejector is good for a little powder. Suitable for Green coffee beans; Electric Parts; Plastic material; seeds…
Function selection: vacuum-sealing, gas flushing-sealing, vacuum-gas- sealing, or only sealing
Optional: PLC control, Gas flushing device, Temperature control , Vacuum ejector, Vacuum sensor,…(Nitrogen Extrusion Device for Gas, O2 … but Exclude Air Bottle.)
Applicants: Food, Chemical, Electronic Parts, & Hardware …
Specification | LVV-6510T | LVV-8510T |
---|---|---|
Voltage | AC220V/240V 1phase | |
Power(Watt.) | 10KW | 11KW |
Max. Sealing | 10mm*2*660mm | 10mm*2*860mm |
Vacuum Time | Adjustable Settings | |
Sealing Time | 0-2.0 sec. | |
Cooling Time | 0-10 sec | |
Vacuum Pump | 無油式幫浦 DP-120 (380W) | |
Dimension | 765*650*1365mm | 965*650*1365mm |
Working Table | 700mm*500mm | 850mm*500mm |
Weight | 120KG | 150KG |
