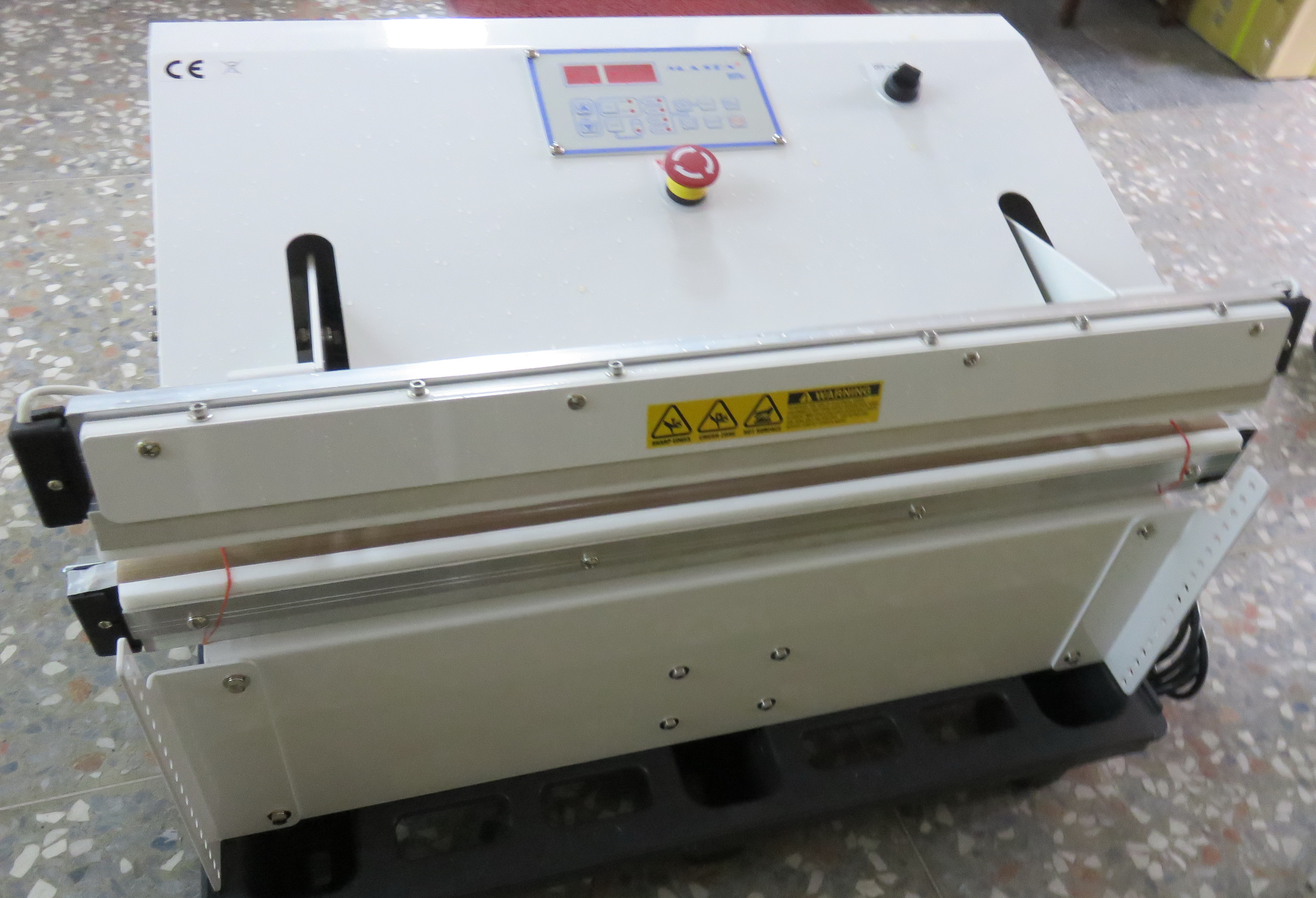

Wu-Hsing – VV Series Tabletop Nozzle-Type External Vacuum Sealer
Is made of metal construction with electrostatic painting, comes with a stainless steel retractable nozzle. Equipped with Oil-less pump, Impulse sealing with 5mm or 10mm of heating element.
After setting the Vacuum time, sealing time, and congealing time, by pressing the foot Switch or start Switch, the vacuum and sealing process is completed efficiently.
To reduce the volume for easier storage and transportation, extend shelf life, and keep the contents securely in place. Not suitable for powders and liquids. Pressure is controlled by Air unit.
Operation requires an outside Air compressor. 6-7kg/cm²(. Customer prepares)
*Smart PCB: 10 programs.
*Vacuum time: 0-99 sec. sealing time: 0-3 sec. congealing time: 0-10 sec.
*Oil-free vacuum pump (Made in Taiwan)
*5mm/10mm width of single sealing or double-sides sealing
*loading weight of Working Table: <5kgs
*Option: 10mm, Stainless steel housing, Gas flushing dev., Vacuum ejector, Vacuum Sensor,

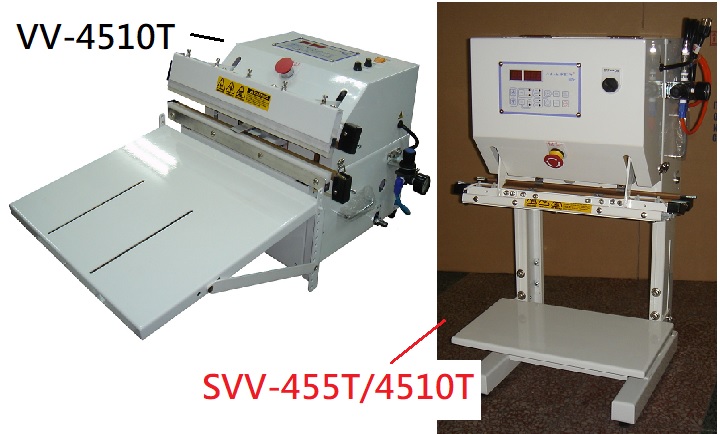

Simple Foot support. Vertical type (SVV)
**Related : VVB series, LMV series, LVV series
Applications: food, electronics, chemicals, and hardware components industries
Specification | VV-455T | VV-4510T | VV-605T | VV-6010T |
---|---|---|---|---|
Voltage | 110v/220v/230v/240v 1 PHASE | |||
Power (Watt.) | 2400W | 2900W | 3000W | 4000W |
Pump Cap. | 180 Torr | |||
Max. Sealing | 5mm*460mm | 10*460mm | 5mm*610mm | 10*610mm |
Vacuum Time | 0-99 sec. | 0-99 sec | 0-99 sec | 0-99 sec |
Sealing Time | 0-3.0 sec. | 0-3.0 sec | 0-3.0 sec. | 0-3.0 sec. |
Cooling Time | 0-10 sec. | 0-10 sec | 0-10 sec | 0-10 sec |
Vacuum Cap | P30 | P30 | P30 | P30 |
Dimension(mm) | 475*820*330 | 475*820*330 | 655*970*330 | 665*970*330 |
Working Table | 450mm*450mm | 450mm*450mm | 600mm*600mm | 600mm*600mm |
Weight | 43KG | 45KG | 53KG | 55KG |
