VVB series are floor model, Horizontal air-sucking.
Nozzle type Vacuum sealer ideal for vacuum dry and solid products:
*Vacuum Advantages and benefits :
1. Extend product shelf life
2. Maintain food flavor
3. Save storage space
4. Product is fixed in the bag, not moving
5. Enhance product quality
*Gas-flushing Advantages and benefits :
1) keep products dry
2) Protect products from damage
3) keep products fresh
Products with liquid and powder, please choose Chamber type vacuum sealer.

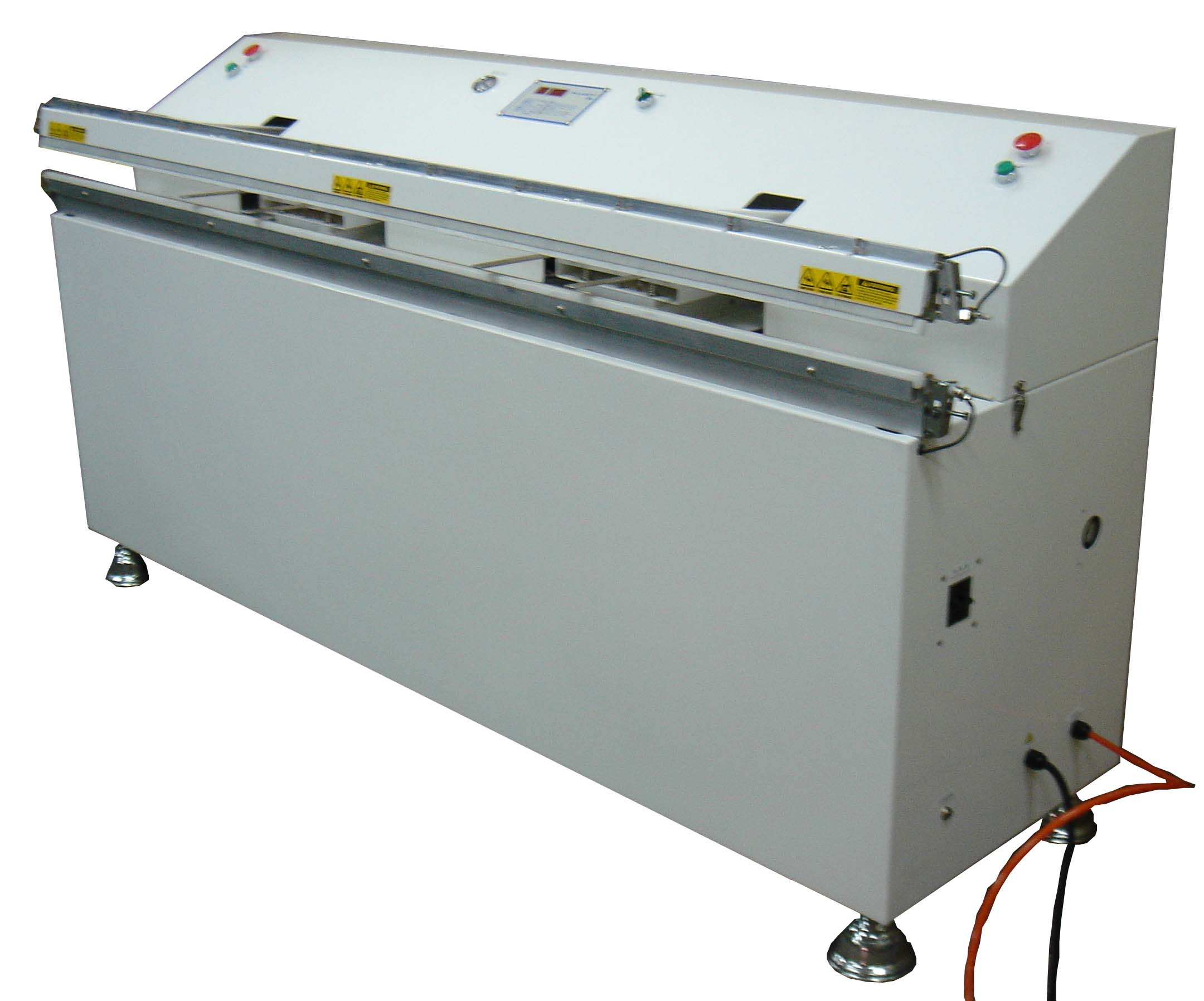

WU-HSING’s Floor model Nozzle Type Vacuum Sealer: VVB series (600mm~ 2500mm) is External Extraction model is made in steel with powder coating. Equipped with a stainless steel retractable nozzle and an Oil-free pump, Impulse sealing with 10mm of heating element. Operated by Start Switch or Foot Switch.
To reduce the volume for easier storage and transportation, extend shelf life, antioxidant and keep the contents securely in place. Not suitable for powders and liquids.
1. Smart PC Board control: 20 programs with digital control panel
2. Over-heating warning
3. Double-sides sealing 10mm is good for thicker and 4 layers of Alum. Bags.
4. Oil-less pump DP-120 (380W)
5. Pneumatically operated –Connect to extra air Compressor(6-7kg/cm2)
6. Any materials (thicker PE can be kept about 7-10 days)
7. Loading weight of Working Table: <10KGS
Ideal for solid & dry goods vacuum & sealing or vacuum ejector is good for a little powder. Suitable for Green coffee beans; Electric Parts; Plastic material; seeds…
Function selection: vacuum-sealing, gas flushing-sealing, vacuum-gas- sealing, or only sealing
Optional: Stainless steel housing SUS#304, PLC control, Gas flushing device, Temperature control , Vacuum ejector, Vacuum sensor,…(Nitrogen Extrusion Device for Gas, O2 … but Exclude Air Bottle.)
Applicants: Food, Chemical, Electronic Parts, & Hardware …
| Specification | VVB-6010T | VVB-8010T | VVB-10010T |
|---|---|---|---|
| Voltage | AC 110V/220V/240V 1phase | AC 220V/240V 1phase | AC 220V/240V 1phase |
| Vacuum Pressure | - | - | - |
| Max. Sealing | 610*10mm | 810*10mm | 1010*10mm |
| Power(Watt.) | 5500W | 7600W | 11KW |
| Vacuum Time | Adjustable Settings | ||
| Sealing Time | 0-2.0 sec. | ||
| Cooling time | 0-10 sec | 0-10 sec. | 0-10 sec. |
| Vacuum Cap | 120 L/min | ||
| Dimension | 665*430*1010mm | 865*430*1010mm | 1065*430*1010mm |
| Weight | 80KG | 100KG | 180KG |
